Yaskawa Solectria Solar, CR1500-24P-25F-400S, Output Fused Remote String Combiner, 1500VDC, 24 Fuse Positions, Positive Polarity Only, 25A Fuses Included, 400A 2-Pole Switch, Polyester Powder Coated Steel Enclosure, NEMA Type 4, DC Surge Protection.
Manufacturer Info

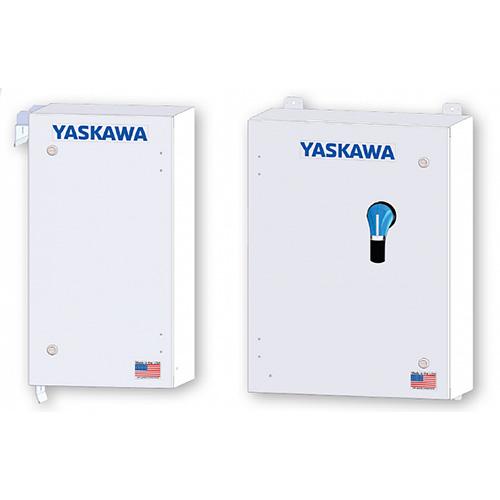

SOLECTRIA XGI 1500 Combiners
Yaskawa Solectria Solar offers a family of 1500V PV string combiners designed to pair exclusively with SOLECTRIA XGI 1500 inverters. For the XGI 1500-166 Series Inverters, the Attachable Combiner and Remote Combiner have both poles fused and a 250A rated switch. The Attachable Combiner is designed to mate directly to the XGI 1500 inverter for use in distributed PV systems where the combiner and inverter are located together throughout the array field. The Remote Combiner has similar features, but is designed for a centralized or clustered deployment of multiple XGI 1500 inverters where the combiners are distributed throughout the PV array field. Also for the XGI 1500-166 Series Inverters, Solectria offers the new Remote Combiner line with positive polarity fuses only and a 250A switch. For the new XGI 1500-250 Series Inverters, is the Remote Combiner with positivie polarity fuses and a 400A switch. Solectria's combiner lines feature the highest quality and durability in the industry today. Choose from models with 16 to 28 fused positions and either fuses from 20A to 32A. The combiners match the XGI 1500 in quality and appearance. The combiner models satisfy the National Electrical Code for systems with ungrounded PV source circuits. All Yaskawa Solectria Solar XGI inverters and combiners are Made in the USA with global components and comply with the Buy American Act.
SOLECTRIA XGI 1500 Combiners Features
Yaskawa Solectria Solar offers a family of 1500V PV string combiners designed to pair exclusively with SOLECTRIA XGI 1500 inverters. For the XGI 1500-166 Series Inverters, the Attachable Combiner and Remote Combiner have both poles fused and a 250A rated switch. The Attachable Combiner is designed to mate directly to the XGI 1500 inverter for use in distributed PV systems where the combiner and inverter are located together throughout the array field. The Remote Combiner has similar features, but is designed for a centralized or clustered deployment of multiple XGI 1500 inverters where the combiners are distributed throughout the PV array field. Also for the XGI 1500-166 Series Inverters, Solectria offers the new Remote Combiner line with positive polarity fuses only and a 250A switch. For the new XGI 1500-250 Series Inverters, is the Remote Combiner with positivie polarity fuses and a 400A switch. Solectria's combiner lines feature the highest quality and durability in the industry today. Choose from models with 16 to 28 fused positions and either fuses from 20A to 32A. The combiners match the XGI 1500 in quality and appearance. The combiner models satisfy the National Electrical Code for systems with ungrounded PV source circuits. All Yaskawa Solectria Solar XGI inverters and combiners are Made in the USA with global components and comply with the Buy American Act.
SOLECTRIA XGI 1500 Combiners Features
- Made in the USA with global components
- Buy American Act (BAA) compliant
- Designed exclusively for use with XGI 1500 inverters
- Both poles fused and switched - 250A
- Positive poles fused and switched - 250A
- Positive poles fused and switched - 400A
- 16, 20, 24, & 28 fused positions
- 20 A to 32A fuse options for select models
- Connection plates for compression terminals
- 90C terminal rating
- SOLECTRIA XGI 1500 COMBINERS (pdf) | Download
- Made in the U.S.A, BAA & BABAA Compliant Letter (pdf) | Download
- Surge arrestor, both polarities
- UL 1741
