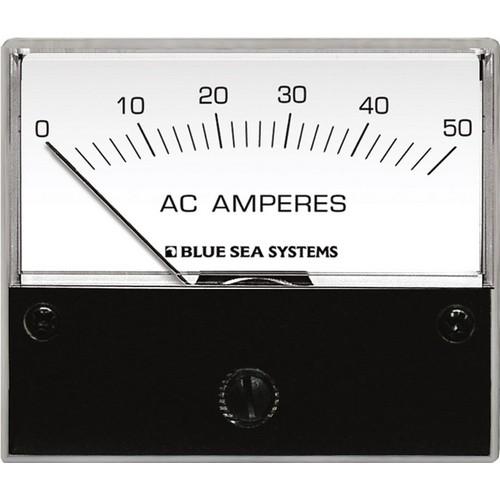

AC Ammeter - 0 to 50A with Coil
- Simple 2-wire connection
- Meter senses and powers from coil slipped over wire to be measured
- Includes AC current transformer
- Instructions | Download
- Mounting Diagram (surface mount) | Download
- Mounting Diagram (panel mount) | Download
| Specifications | |
|---|---|
| Meter | Current |
| Face Size | 2.75in (69.85 mm) |
| Function | 0 to 50A |
| Meter Current | 50mA AC at full scale |
| Weight | 0.32lb (0.15 kg) |
| Weight | 0.30lb (0.14 kg) |
| Optional Accessories | ||
|---|---|---|
| 1475 | Mounting Panel Single Meter | |
| 8013 | Blank Meter Panel - Single | |
| 8073 | AC Current Transformer - 50A AC |
| Included With | ||
|---|---|---|
| 8095 | AC Main + 8 Positions/DC Main + 29 Positions | |
| 8195 | AC Main + 8 Positions/DC Main + 29 Positions [European] | |
| 8086 | AC 3 Sources + 12 Positions/DC Main + 19 Position | |
| 8186 | AC 2 Sources + 12 Positions/DC Main + 19 Positions [European] |
