Blue Sea Systems, 4305, WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

  • Model: 4305
  • GTIN: 00632085043056
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$98.72 $75.94

Manufacturer Info

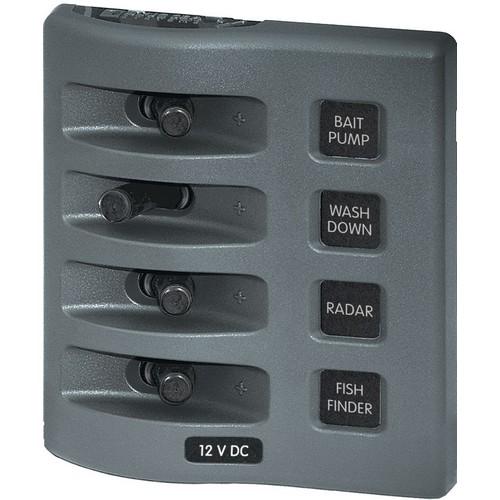

WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

Many switch panels mounted on the dash or flybridge do not stand up to harsh marine environment. WeatherDeck Switch Panels are waterproof and rated IP67 (for temporary immersion in water) and use materials that won't deteriorate in the harsh sun, salt, and water. Many small boats, which already have circuit protection and do not run at night, simply need a switch panel which is waterproof. The WeatherDeck Switch Panel has all the rugged features of the proven WeatherDeck Panel family however does not have the added cost of backlighting and circuit protection.
  • Integrated switch guards reduce the risk of accidental switching

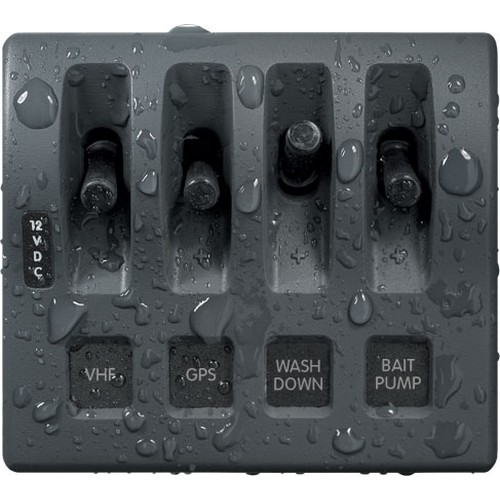

  • Panels can be mounted in four different orientations
  • Panel front rated IP67 when properly mounted with watertight mounting gasket
  • IP67 - protected against immersion up to 1 meter for 30 minutes
  • UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws
  • Dimensioned Drawing | Download
  • Instructions | Download
Specifications
Weatherproof Waterproof
Positions4
Nominal Voltage12V DC
24V DC
Circuit ProtectionNone
Maximum Amperage 15A @ 12V DC (per circuit)
Panel Cumulative Rating45A
MaterialReinforced Polycarbonate
Height4.30in (109.22 mm)
Width3.88in (98.55 mm)
Depth2.50in (63.5 mm)
Weight0.90lb (0.41 kg)
Included
QtyPNProduct
4 4138 WeatherDeck® Toggle Switch Boot - Black
4 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
1 4215 Waterproof DC Label Kit - 30 Black Square Labels V1 [LABEL]
Optional Accessories
5025 ST Blade Fuse Block - 6 Circuits with Negative Bus and Cover
5026 ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
5030 ST Blade Fuse Block - 6 Circuits with Negative Bus
5031 ST Blade Fuse Block - 12 Circuits with Negative Bus
