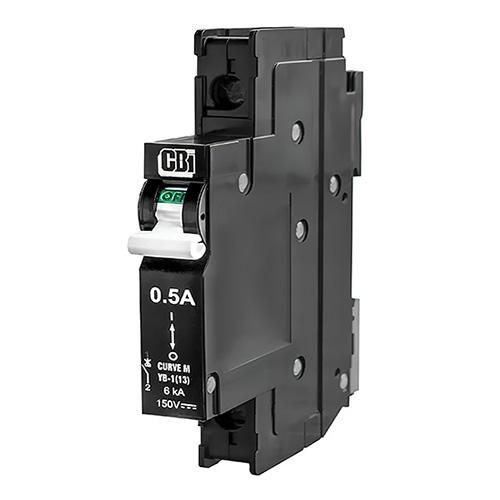

Midnite Solar, MNEPV40-150-1PNP, 150VDC din rail mount breaker (13mm wide).

Model: MNEPV40-150-1PNP
Manufactured by: Midnite Solar
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$29.91 $23.01

Manufacturer Info

Other products

150VDC din rail mount breaker (13mm wide). Shipping dimensions are 4L x 3W x 0.5D at 0.2 Lbs
Always in stock!

Note: Branch circuit rated 489A
MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

NON POLARIZED
Environmental Rating - Type 1 (Indoor)
DC Voltage Rating - 150VDC
Wire Size Range - 14 to 6 AWG
Width - 0.5 inches (13mm)
Number of poles - 1
Listed for US & Canada
10,000 AIC

A case contains 12 breakers.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
