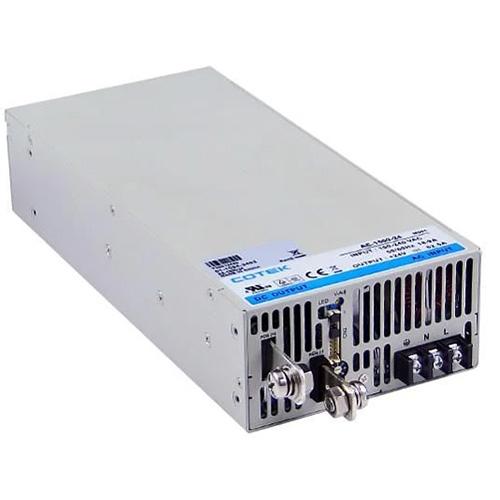

AE-1500 Features
- Universal AC input / Full range
- Programmable output voltage (0%~105%)e
- Programmable output current (0%~105%)e
- Built-in ORingFETe
- Built-in IC to isolate communicatione
- Forced current sharing at parallel operatione
- Constant current limite
- Selectable +5V / 0.5A or +9V / 0.3A auxiliary outpute
- Global control via RS232e
- Remote setting multiple PSU via RS232, RS485 & I2Ce
- Power OK signale
- Remote ON / OFF, Remote sense functione
- Protection: OVP, OLP, OTP, Fan failuree
- Built-in active PFC Functione
- Accessory: CT Seriese
- Product Datasheet | Download
| Main Features | Programmable output voltage and output current (0%~105%) ? Constant current limit suitable for battery charging application ? Parallel connection with current sharing Serial connection ( |
|---|---|
| Rated Power | 1500W |
| DC Output Voltage | 12V, 15V; 24V; 30V; 36V; 48V; 60V |
| DC Output Quantity | Single |
| Rated Current | 125A; 100A; 62.5A; 50A; 41.7A; 31.3A; 25A |
| Ripple & Noise (Max.) | 150mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p |
| Input Voltage Range | 90~264VAC, 127~370VDC |
| Inrush Current (Typ.) | 30A / 115VAC, 45A / 230VAC |
| Function | Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim |
| Parallel Connection | Yes |
| Protection | Over Load / Over Voltage / Over Temperature / Fan Failure |
| Cooling | Load and temperature control fan |
| Efficiency | 88%; 89%; 91%; 91%; 91%; 92%; 92% |
| Operating Temperature | -25~60C |
| Storage Temp. & Humidity | -40~85C, 10~95%RH |
| Safety | TUV / UL / CE / UKCA / CB |
| Dimension (WxHxD) | 127x64x280 mm |
| Weight (Net) | 2.6kg |
