The images shown are for illustration purposes only and may not be an exact representation of the product

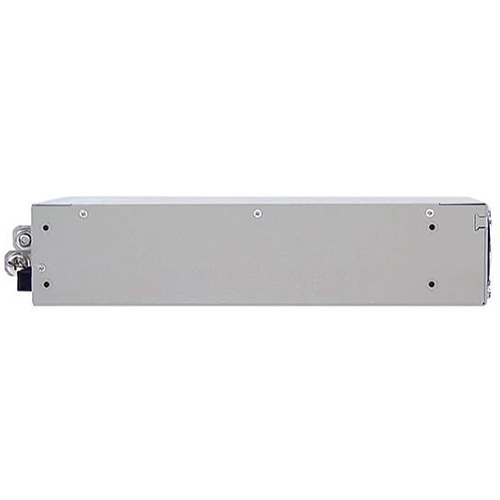

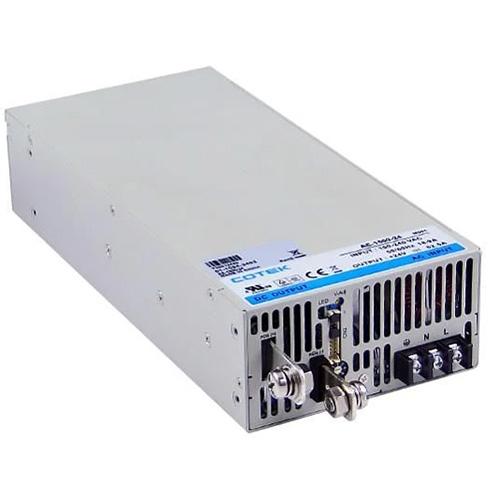

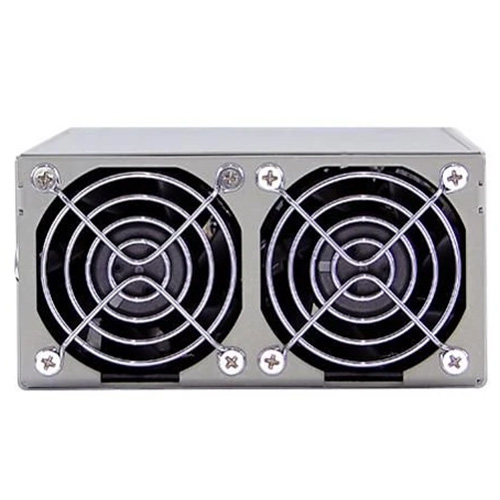

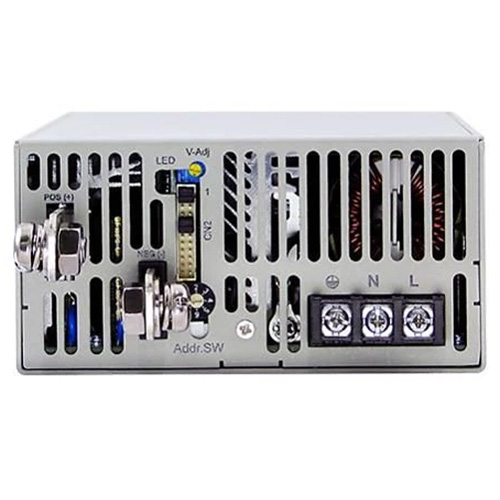

Cotek, AE1500-15 Oring, 1500W Programmable Single Output
Model: AE1500-15 OringManufactured by: CotekCondition: New
Estimated Delivery:
Nov 22nd - Nov 28th
In Stock
Out of Stock
AE-1500 Features Universal AC input / Full range Programmable output voltage (0%~105%)e Programmable output current (0%~105%)e Built-in ORingFETe Built-in IC to isolate communicatione Forced current sharing at parallel operatione Constant current limite Selectable +5V / 0.5A or +9V / 0.3A auxiliary outpute Global control via RS232e Remote setting multiple PSU via RS232, RS485 & I2Ce Power OK signale Remote ON / OFF, Remote sense functione Protection: OVP, OLP, OTP, Fan failuree Built-in active PFC Functione Accessory: CT Seriese Product Datasheet | Download Main Features Programmable output voltage and output current (0%~105%) ? Constant current limit suitable for battery charging application ? Parallel connection with current sharing Serial connection ( Rated Power 1500W DC Output Voltage 12V, 15V; 24V; 30V; 36V; 48V; 60V DC Output Quantity Single Rated Current 125A; 100A; 62.5A; 50A; 41.7A; 31.3A; 25A Ripple & Noise (Max.) 150mVp-p; 150mVp-p; 240mVp-p; 300mVp-p; 360mVp-p; 480mVp-p; 600mVp-p Input Voltage Range 90~264VAC, 127~370VDC Inrush Current (Typ.) 30A / 115VAC, 45A / 230VAC Function Auxiliary power; Remote ON/OFF control; Power OK signal; Output voltage trim; Output current trim Parallel Connection Yes Protection Over Load / Over Voltage / Over Temperature / Fan Failure Cooling Load and temperature control fan Efficiency 88%; 89%; 91%; 91%; 91%; 92%; 92% Operating Temperature -25~60C Storage Temp. & Humidity -40~85C, 10~95%RH Safety TUV / UL / CE / UKCA / CB Dimension (WxHxD) 127x64x280 mm Weight (Net) 2.6kg
