Manufacturer Info

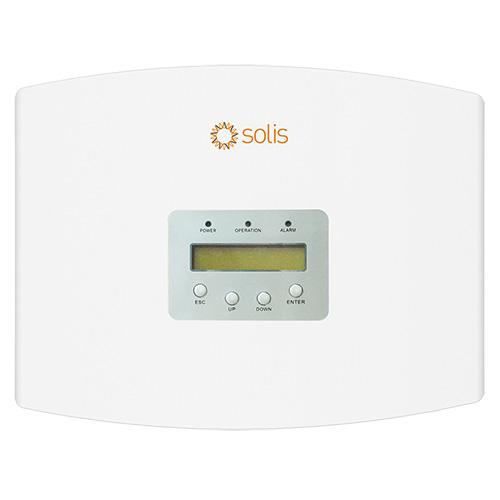

Export Power Manager
EPM1/EPM3/EPM3-PRO/EPM3-PLUS
The Solis export power manager is the ideal solution for smart energy management for both residential and commercial systems. The unit allows you to adjust export values to satisfy local network regulatory requirements. Energy management with the Solis export power manager allows for higher self-consumption and efficient use of the locally generated PV power.
Export Power Manger
Leading Features
Smart & strong
EPM1/EPM3/EPM3-PRO/EPM3-PLUS
The Solis export power manager is the ideal solution for smart energy management for both residential and commercial systems. The unit allows you to adjust export values to satisfy local network regulatory requirements. Energy management with the Solis export power manager allows for higher self-consumption and efficient use of the locally generated PV power.
Export Power Manger
Leading Features
Smart & strong
- Simultaneous control of 80 X Solis inverters
- Realizing reactive compensation of the system
- Datasheet_Solis-EPM-5G_Global_V3.4_2023_08 | Download
- Solis_Manual_EPM-5G Series_V1.0(20230518)) | Download
- Solis_Manual_EPM_5G-Plus_V1.6(20221009) | Download
- EPM Field Solutions | Download
- Simultaneously monitor the operating data of the 80 X Solis inverter, saving the cost of the monitoring system
- The control accuracy is up to 1%, which improves the system's spontaneous use rate
- Supports simultaneous access of Solis inverters with different powers
- Monitor power generation and load consumption at all times
| Input AC | Rated voltage | 3/N/PE, 230 V / 400 V | Input voltage range | 175 ~ 519 V (L-L) |
| Input frequency range | 45~65 Hz |
| Communication | Inverter communication | Modbus | Communication with inverter | RS485 (Wired) |
| Max. communication inverter numbers | 60 (The installed capacity of the inverter cannot exceed 5MW) | Max. communication distance | 1000 m | |
| Monitoring | WiFi/4G/LAN Stick (Optional) |
| General Data | Operating ambient temperature range | -25 ~ +60C | Relative humidity | 5%~95% |
| Max. operation altitude | 2000 m | Ingress protection | IP65 | |
| Pollution degree | PD2 (Inside), PD3 (Outside) | Overvoltage category | III | |
| Self consumption | <6 W | Dimensions (W*H*D) | 364*276*114 mm | |
| Weight | 2.1 kg (without CT, Meter) | AC connection | Quick connection terminal | |
| Display | LCD | Smart meter | Yes | |
| CT connection | Plug terminal | CT specification | Optional (Secondary current is 5A) | |
| Power control accuracy | 1% |
| Features | Failsafe function | Yes | Remote upgrade | Yes |
| Control time | 5 s |
