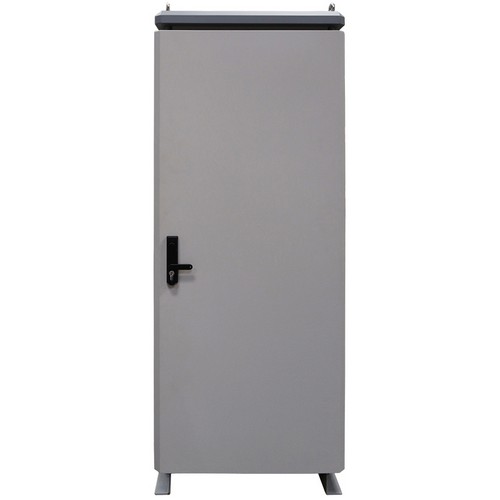

Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! Master
The AIMS Power lithium battery cabinet is designed to work with the AIMS Power hybrid inverters. The powerful lithium batteries installed in the pre-wired cabinet provide power for critical loads, load sharing during night hours, or when grid power is at peak rates. The battery cabinet is charged using solar or when grid power is available. When the battery cabinet is used with an AIMS hybrid inverter, the cabinet can be set to charge when grid rates are low or charged using solar first, then grid if needed. You can also program the hybrid/battery to power loads during peak grid hours. This helps offset your power bill!
The pre-programmed BMS works seamlessly with the hybrid inverter and the pre-wired design allows for easy set up. The battery cabinet can be used with a second cabinet to add even more power to your system. Max 3 cabinets per hybrid inverter. 1 master cabinet and 2 slaves.
The add on cabinet is part # LFP230V96A-S. (slave cabinet and must be used with the master because the master has the BMS)
Features
The AIMS Power lithium battery cabinet is designed to work with the AIMS Power hybrid inverters. The powerful lithium batteries installed in the pre-wired cabinet provide power for critical loads, load sharing during night hours, or when grid power is at peak rates. The battery cabinet is charged using solar or when grid power is available. When the battery cabinet is used with an AIMS hybrid inverter, the cabinet can be set to charge when grid rates are low or charged using solar first, then grid if needed. You can also program the hybrid/battery to power loads during peak grid hours. This helps offset your power bill!
The pre-programmed BMS works seamlessly with the hybrid inverter and the pre-wired design allows for easy set up. The battery cabinet can be used with a second cabinet to add even more power to your system. Max 3 cabinets per hybrid inverter. 1 master cabinet and 2 slaves.
The add on cabinet is part # LFP230V96A-S. (slave cabinet and must be used with the master because the master has the BMS)
Features
- Pre-programmed to work seamlessly with AIMS hybrid inverter
- Pre-wired for easy installation and set up

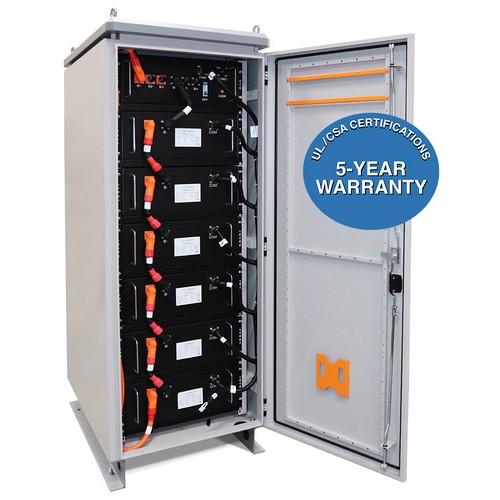

- Five year limited warranty
- Requires only 3 simple wires to connect to the inverter (positive, negative and CAN)
- Superior BMS for optimal performance
- Expandable - max 3 per inverter (1 master and 2 slaves)
- Cell balancing
- More efficient during high watt usage
- Natural cooling
- Eye bolts for lifting included
- Voltage DC: 230.4V
- Amp hours: 96
- kWh 22.1 (22,114 watt hours)

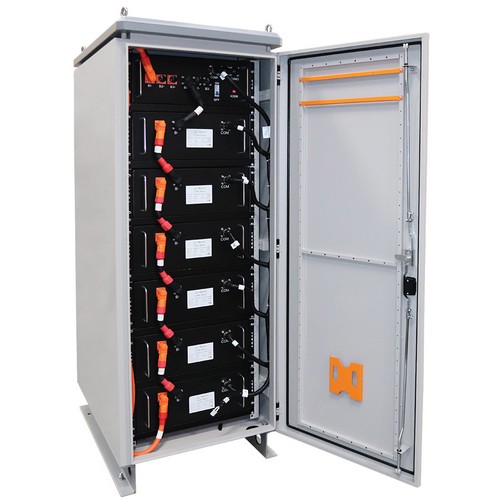

- Cabinet includes qty 6 38.4V lithium packs wired in series.
- Max charge/discharge current 50amps
- Cycle life >3500
- Cut off discharge voltage - 180V
- Max charge voltage- 262.8
- Efficiency >97%
- IP grade - IP54
- Weight - 650 lbs

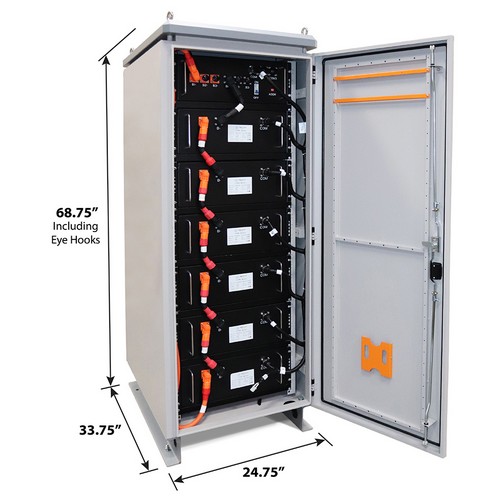

- Dimensions (inches) - 68.75H x 33.75D x 24.75W
