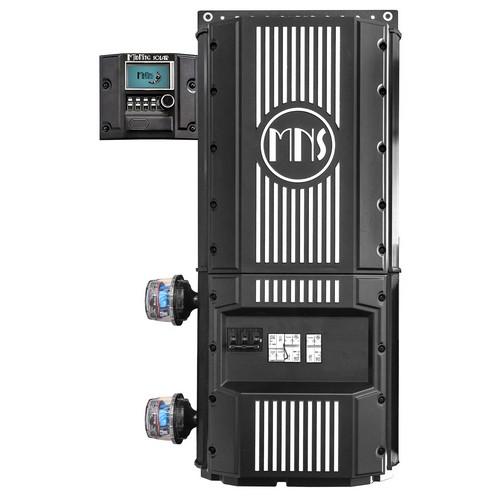

The Rosie Pre-wired Systems were designed by MidNite Solar's engineers with over 100 years of renewable energy off-grid experience. The Rosie Pre-wired Systems have a high frequency, high power design that is light weight and provides pure sine wave power!

You need Rosie, she IS the Inverter you have been waiting for! Rosie's pre-wired systems were designed by Midnite Solar engineers with 100 plus years of renewable energy off grid experience! Combined with the ease of built in features that make Rosie's pre-wired stand out and our industry leading warranties all while still being proudly made and assembled here the USA, we have thought of everything so that you can take all that guess-work out of your equation!!

Midnite designed our Rosie and Barcelona Pre-wired Systems for the first-time homeowner Do-it-yourselfer, and the experienced solar installers alike. We have yet again raised that bar to show what is possible and easy to use. And, we might add, IS listed UL1741, UL458, CSA 107.01 and pending UL458 and CSA

Let us start with some features you will appreciate. First this pre-wired is designed to fit together like puzzle pieces, each one designed to work flawlessly with the next. At only 21#, the Rosie E-panel combined with our Rosie Backplate 8# your base is now less than 30 pounds. If you top it off with a Rosie inverter at 42#, you get a total combined weight of only 71 pounds! This can be a huge factor for where you place it, and how many hours you will spend installing it on the walls. Midnite Solar prewired system for Rose and Barcelona feature True Sine wave technology, quiet forced air cooling and wait, what's that a ZERO transfer time! Yes, we said it ZERO transfer time. How about a constant monitoring SOC, yep, comes equipped with the Midnite Wizban Jr, paired with our newest released MNGP2 with an easy turn dial and bigger screen! Want 120/240Vac Output? Done! Want Solid Die cast aluminum enclosure for years of durable and reliable protection of your investment? Done! How about a screened gecko/mud dauber proof enclosure? Yep, we did that too!

There is nothing we left out on our Midnite signature products! We design with you in mind! Lets not forget our classic design favorites, Battery temperature sensor, as well as Remote battery voltage sensor and an included Canbus communication ready a 60A transfer relay per 120VAC leg, Two aux terminals with 15 aux options per Aux terminal, and lastly, you will always be covered by our SPD's that are always standard! Whew!!! Those are just standard here at Midnite Solar! Rosie's prewired systems have high frequency, high power design that is lightweight, and does not skimp on features that will last you for years to come.

Features

• 7000 watts / 48 volt DC
• Extremely lite weight
• Rosie Inverter: 42 lbs.
• Rosie E-panel: 21 lbs.
• Rosie Backpanel: 8 lbs.
• Includes 2 MNSPD-300-AC
• 2 aux input/outputs
• 120/240 Vac output
• True sine wave inverter with charger
• Zero transfer time
• Quiet forced air cooling
• State Of Charge monitoring with MidNite Wizbang Jr. and MNGP2 display
• Die cast aluminum enclosure
• Auto gen start (two-wire generators) Coming soon
• Battery Temperature Sensor included
• Remote battery voltage senser
• Canbus communication
• Lithium compatible
• 60A transfer relay
• Screened (gecko/mud dauber proof)
• Listed UL1741 and CSA NOTE: CSA pending on breaker boxes
• Designed and built in Arlington, WA USA
• Rosie Pre-wired Systems Brochure | Download

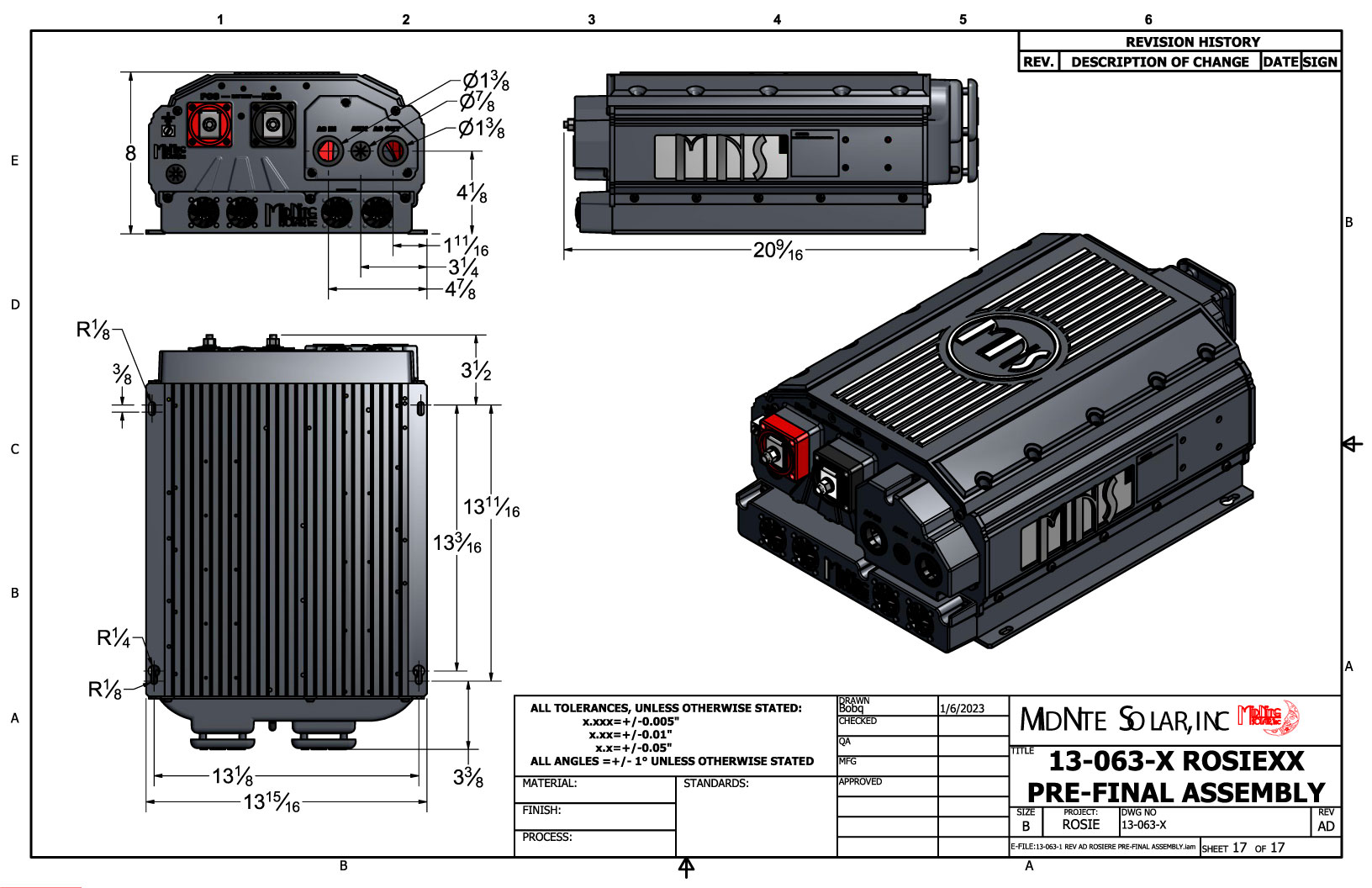

• ROSIEXX PRE-FINAL ASSEMBLY 2.1.23 | Download

Output power (continuous) at 25C	7000VA
Overload 30 min sec at 25C	8400VA
Output power (continuous) at 40C	6000VA
Maximum output current 60 seconds (RMS)	60A
Maximum surge	15,000VA
Output frequency / voltage	60Hz/Output voltage 120 or 120/240VAC
Total harmonic distortion at rated power	<5%
Consumption	30 Watts without search and 7 watts with search
Input DC voltage range	40 to 65VDC
Maximum charge from AC source	120A
Warranty	7 years
