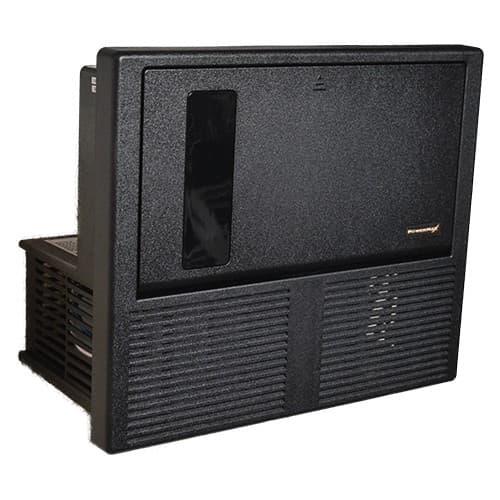

PowerMax Power Center - AC & DC Distribution Panel with built-in Smart Charger
The PPC Series RV Power Center is designed to manage both the AC and DC power requirements within a Motorhome. With our lightweight design, it easily mounts within your RV's Power Center housing and is an ideal replacement or upgrade for the WF 8900 PEC Power Center. With 30 Amp main AC input, main and branch AC circuits, pre-wired DC circuits for ease of installation and LED lights for each circuit to show open circuits.
Our PPC Series comes with the AC/DC Smart Charger built-in to properly charge and fully maintain the battery voltage while providing clean 12Vdc power for all sensitive electrical equipment, with or without a battery in line. User-adjustable DC voltage is standard so the PPC Series can be used with many battery types, including Lituim on our single Fixed output mode so no need to change when upgrading the battery type in the future
Features
The PPC Series RV Power Center is designed to manage both the AC and DC power requirements within a Motorhome. With our lightweight design, it easily mounts within your RV's Power Center housing and is an ideal replacement or upgrade for the WF 8900 PEC Power Center. With 30 Amp main AC input, main and branch AC circuits, pre-wired DC circuits for ease of installation and LED lights for each circuit to show open circuits.
Our PPC Series comes with the AC/DC Smart Charger built-in to properly charge and fully maintain the battery voltage while providing clean 12Vdc power for all sensitive electrical equipment, with or without a battery in line. User-adjustable DC voltage is standard so the PPC Series can be used with many battery types, including Lituim on our single Fixed output mode so no need to change when upgrading the battery type in the future
Features
- 30 Amp AC and 12 Volt DC Distribution Panel
- Built-in 3 Stage charging and single output modes - user adjustable
- Works with ALL Battery Types - Lithium, Lead Acid, AGM
- Pre-wired DC Output for an easier install
- Blown fuses DC indicator LED
- Overtemp & Reverse Polarity protection
- Temperature controlled Quiet cooling fan
- 2-year warranty
- Available in 45A, 55A, 60A, 75A, 100 Amp models
- 30 Amp AC input with 12 Vdc Distribution Panel
- Space for 1 Main and 5 Branch breakers
- 11 - 12Vdc Fused Circuits - with blown indicator LED
- Dimensions for PPC 30-35/45/55A (Full-Size Power Center that replaces WF-8900 PEC)
- Cut out - 12 1/8 (W) x 11 (H)
- Dimensions for PPC 55A 35/45/55A (Smaller that replaces WF-8700 PEC)
- Cut out - 10 7/8 (W) x 8 3/4 (H)
- PPC Series Manual | Download
