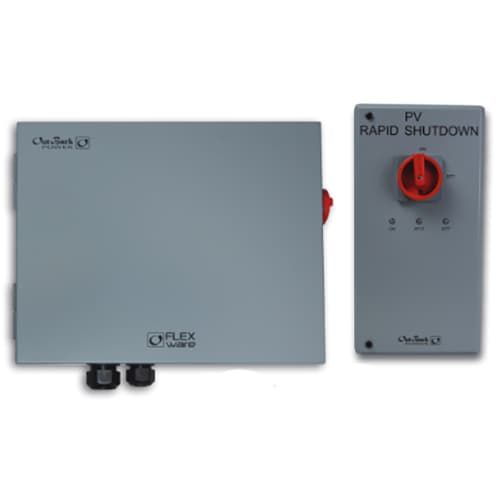

Outback, RSD-AFCI, ICS Plus PV rapid shutdown package for FM100 SystemEdge packages. Compatible with up to six strings of PV source circuits. Includes one FWPV6-FH600-SDA shutdown box, one RSI, and one power supply. (Fuses sold separately.)
Manufacturer Info
Product Highlights
OutBack provides a fully-compliant PV rapid shutdown equipment plus combiner solution with the RSD-AFCI.
The FLEXmax 100 Rapid Shutdown meets the following 2014 National Electric Code (NEC) requirements:
- End-to-end solution listed to UL1741
- Arc fault circuit interrupter (AFCI) listed to UL1699B with local and remote indication
- Type 3R enclosures rated for indoor or outdoor installation
- Flexible design - install the combiner box vertically or horizontally and mount to racking or under an array
- Interoperable with compatible third-party PV rapid shutdown devices (PVRSE with dry contact)
- FLEXmax 100 Rapid Shutdown Kit Datasheet | Download
OutBack provides a fully-compliant PV rapid shutdown equipment plus combiner solution with the RSD-AFCI.
The FLEXmax 100 Rapid Shutdown meets the following 2014 National Electric Code (NEC) requirements:
- NEC 690.11 - Arc fault protection (protects against arc faults due to loose connections, damaged wires or other DC component failures)
- NEC 690.12 - Rapid shutdown (provides a means for first responders to safely de-energize controlled conductors)
- NEC 690.15 - DC combiner disconnect (opens all ungrounded circuit conductors from all sources of power)
