The images shown are for illustration purposes only and may not be an exact representation of the product

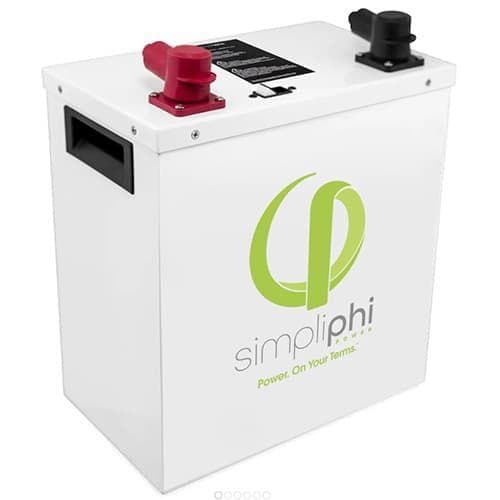

SimpliPhi, PHI-3.8-24-60-M, Lithium Ferro Phosphate (LFP) Battery

  • Model: PHI-3.8-24-60-M
  • Manufactured by: SimpliPhi
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$3,490.22 $2,684.79

Manufacturer Info

PHI 3.8-M BATTERY

SimpliPhi Power's PHI 3.8-MTM Battery utilizes the safest Lithium Ion chemistry available, Lithium Ferro Phosphate (LFP). No cobalt or explosive hazards that put customers at risk. By eliminating cobalt, the risk of thermal runaway, fire propagation, operating temperature constraints, and toxic coolants are reduced. When combined with our integrated high-performance Battery Management System (BMS), accessible 80A DC breaker On/Off switch and overcurrent protection (OCPD), the PHI 3.8-M Battery delivers safe, highly efficient and cost-effective service over the life of both residential and commercial installations, on or off-grid. Compatible with all industry-standard inverter charge controllers, the PHI 3.8-M Battery supports balance-of-system equipment and optimizes any power generation source - solar, wind, grid, generator - with scalable, on-demand energy storage solutions for critical back-up and daily savings on electricity bills.
CHEMISTRY Lithium Ferro Phosphate (LFP) The safest Lithium Ion chemistry available No cobalt, risk of thermal runaway or fire
OCPD Built-in accessible 80 Amp DC breaker On/Off switch
BMS Built-in Battery Management System
COMPATIBILITY Compatible with all industry standard inverters and charge controllers Battery bank-to-inverter output sizing must adhere to a 2:1 ratio: battery quantity inverter kWAC rating inverter efficiency) battery MAX Continuous Discharge Rate in kWDC
MAINTENANCE Maintenance-free No ventilation, cooling or thermal regulation required
PHI 3.8-M 24V 48V
DC Voltages - Nominal 25.6VDC 51.2VDC
Amp-Hours 151 Ah 75 Ah
Rated kWh Capacity @ C/2 3.8 kWh DC @ 100% DOD 3.04 kWh DC @ 80% DOD 3.8 kWh DC @ 100% DOD 3.04 kWh DC @ 80% DOD
MAX Discharge Rate (10 minutes) 80 Amps DC (2.05 kW DC) 80 Amps DC (4.1 kW DC)
MAX Continuous Discharge Rate 75 Amps DC (1.9 kW DC) 37.5 Amps DC (1.92 kW DC)
MAX Continuous Charge Rate 75 Amps DC (1.9 kW DC) 37.5 Amps DC (1.92 kW DC)
DC Voltage Range1 24 VDC to 28 VDC 48 VDC to 56 VDC
Depth of Discharge1 up to 100% up to 100%
Operating Efficiency 98% 98%
Charge Temperature1 32 to 120 F (0 to 49 C) 32 to 120 F (0 to 49 C)
Operating Temperature1 -4 to 140 F (-20 to 60 C) -4 to 140 F (-20 to 60 C)
Storage Temperature1 6 months: 14 to 77 F (-10 to 25 C) 3 months: -4 to 113 F (-20 to 45 C) 6 months: 14 to 77 F (-10 to 25 C) 3 months: -4 to 113 F (-20 to 45 C)
Self-Discharge Rate <1% loss per month <1% loss per month
Cycle Life 10,000+ (@80% DOD) 10,000+ (@80% DOD)
Memory Effect None None
Warranty Period 10 Years 10 Years
Weight 86 lbs. (39.0 kg) 86 lbs. (39.0 kg)
Dimensions 13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3 (34.3 x 35.6 x 20.3 cm / 0.025 m3) 13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3 (34.3 x 35.6 x 20.3 cm / 0.025 m3)
Model Number PHI3.8 24V 60 VTE BRK PHI3.8 48V 60 VTE BRK
