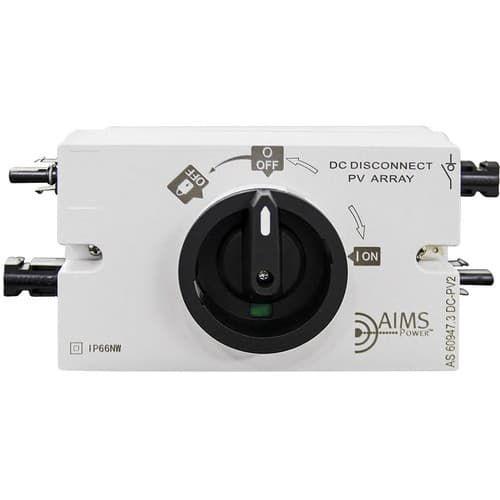

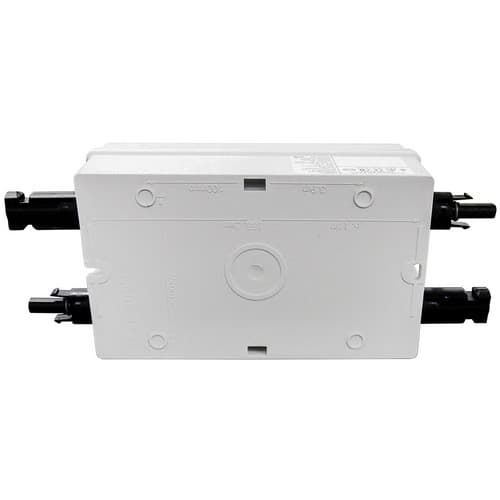

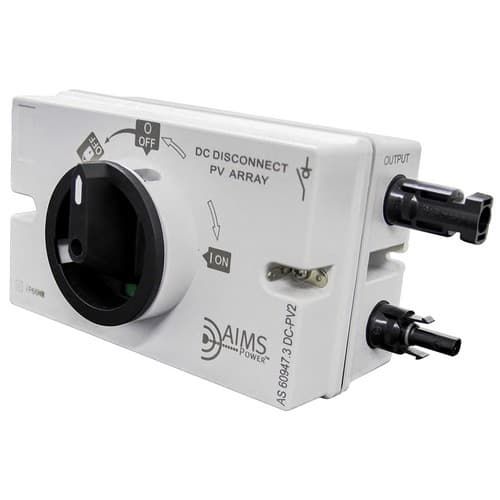

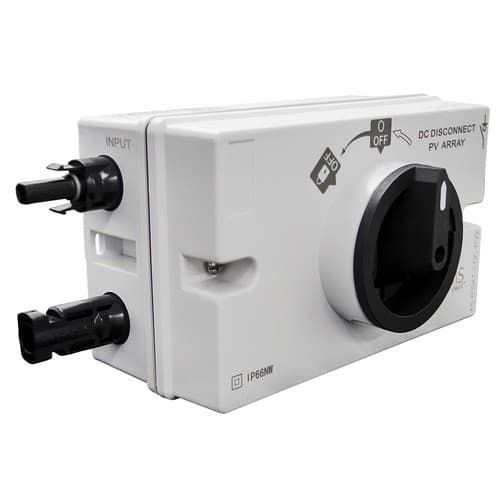

AIMS Power Solar PV DC Quick Disconnect Switch 1200V 32 Amps
The AIMS Solar Quick Disconnect Switch gives your solar system a convenient, extra safety and flexibility when maintenance is required on your system. This quick disconnect switch is also ideal for applications such as cabins or vacation homes that don't require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed. This switch is 1200V with 1 - 32 Amp circuit compatible with small and large off-grid or grid tied solar systems.
Features
The AIMS Solar Quick Disconnect Switch gives your solar system a convenient, extra safety and flexibility when maintenance is required on your system. This quick disconnect switch is also ideal for applications such as cabins or vacation homes that don't require delivery of constant solar power. Simply disconnect your solar array and reconnect when needed. This switch is 1200V with 1 - 32 Amp circuit compatible with small and large off-grid or grid tied solar systems.
Features
- Quickly disconnect DC power from your solar array to the charge controller, batteries and/or inverter.
- Outdoor rated
- Off and on grid applications
- Isolated SAFE-LOCK with three rotational positions reducing the risk of tampering
- Single pull double throw 2IO
- Ensures the disconnection of load circuits and suppression of the arc in under 5 mil secs.
- Lock out option
- Max amperage - 32 amp
- Output and input connections are MC4 compatible for easy set up and installation
- AIMS Power DC Disconnect - DC1200V32A | Download
- 1 - 32 amp circuit
- Up to 1200 volts @ 32 amps
- 2 pole and 1 string
- TUV, SAA, CE, IP certified & ROHS compliant
- Outdoor rated
- Non-corrosive
- Waterproof
- Arc time <2ms
- -40 degrees C to 70 degrees C
- 10 year warranty Dimensions:
- 4"H x 9 3/8"W (including MC4 connectors) x 3 1/4" D
