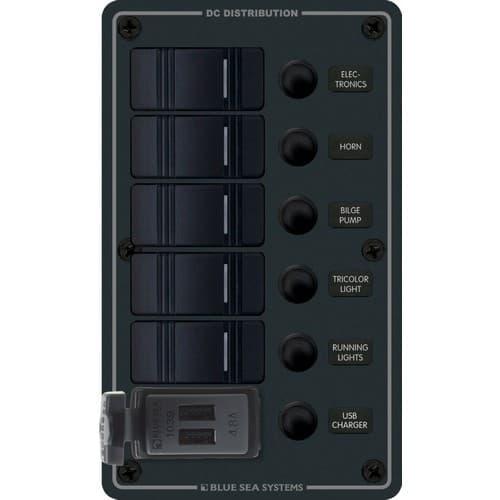

Blue Sea Systems, 8521, Contura Circuit Breaker Switch Panel with USB Charger - 5 Position Black
- Model: 8521
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Now with integrated charging- Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate
- Designed for 12 or 24V DC systems
- Watertight mounting gasket
- ON indicating LEDs embedded in all switches
- 8421 and 8521 include a Small Format Label Set 8217 (Gray) or 8214 (Black)
- 8121 include a Large Format Label Set 8030
- Instructions | Download
| Specifications |
|---|
| Color | Black |
| Nominal Voltage | 12V DC24V DC |
| Circuit Breaker Type | Thermal trip, manual push-button reset only, 15A |
| Panel Cumulative Rating | 45A |
| Operating Current | 18mA per Switch |
| Switch Rating | 20A @ 12V DC, 15A @ 24V DCA |
| USB | 12/24V Dual USB Charger 4.8A (1039) |
| Height | 7.5in (190.5 mm) |
| Width | 4.5in (114.3 mm) |
| Depth | 3.25in (82.55 mm) |
| Included |
|---|
| Qty | PN | Product |
| 1 | 1039 | 12/24V Dual USB 4.8A Chargers - Switch Mount |
| 6 | 4137 | Push Button Reset Only Circuit Breaker Boot - Black |
| 6 | 7056 | Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps |
| 1 | 8214 | Black 60 Label Set |
| 5 | 8282 | Contura Switch SPST Black - OFF-ON |
