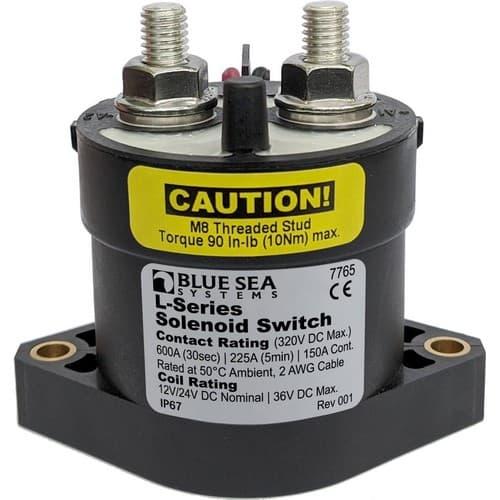

Blue Sea Systems, 7765, Solenoid L-Series - 150A 12/24V
- Model: 7765
- GTIN: 00632085077655
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Ideal for switching DC subpanels, thrusters, windlass, inverters and other medium-amp DC loads.- Continuous duty, SPST - Normally Open
- Hermetically sealed contacts
- Activated by a low amperage ON-OFF switch mounted anywhere
- Coil control circuit minimizes heating and amperage draw
- No external coil supression required
- Wiring Diagram | Download
- Dimensioned Drawing | Download
| Specifications |
|---|
| Control Circuit Connection | 22 AWG Tinned Wire |
| Nominal Voltage | 12V DC24V DC |
| Coil Function | Normally Open |
| Maximum Voltage | 320V DC |
| Amperage Operating Current continuous | 0.13A @ 12 V0.07A @ 24 V |
| Input Voltage | 9-36V DC |
| Amperage Operating Current when changing state | 3.8A |
| Terminal Stud | M8 (accepts 5/16" terminals) |
| Terminal Stud Torque | 90 in-lb (10.17 Nm) max |
| Continuous Rating | 150A |
| Intermittent Rating | 225A (5 min) |
| Cranking Rating 30 sec | 600A |
| Mounting Screw | #10 or M5 |
| Mounting Screw Torque | 30 in-lb (3.39 Nm) max 15 in-lb (1.69 Nm) min |
| Operating Temperature Range | –40°C to +85°C |
| Weight | .95lb (0.43 kg) |
