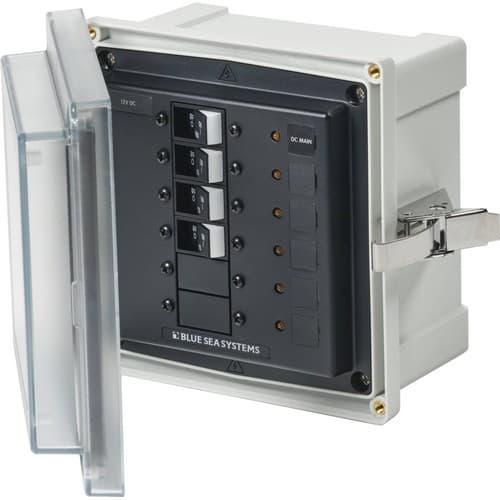

Blue Sea Systems, 3135, Enclosure SMS Panel 12/24VDC UL489 100A Main/3CB

Model: 3135
GTIN: 00632085031350
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Nov 25th - Dec 1st
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$495.33 $381.02

Manufacturer Info

Other products

Panel enclosure with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.

Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard, and other vessels covered under CFR 46)
Models available with ELCI Main circuit breakers for 120V 30A, 120V 50A, and 120/240V 50A
Blank apertures for custom breaker loading
Glass filled polycarbonate base
Clear cover allows easy view of circuit breaker status
Overlapping cover for strength and increased gasket protection
Oversized, formed in place seamless PUR gasket
Easily removable stainless steel hinge pin for unobstructed installation
Stainless steel latch secures cover without penetrating the enclosure
Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
Stainless steel mounting hardware included
Includes waterproof glands
LED lights for back lighting and ON indication
Instructions | Download
Wiring Diagram | Download

Specifications
Circuit Breaker Type	1 x Main 12/24V DC, 100A (7446)3 x Branch 12/24V DC, 15A (7442)
Cover Screws and Hardware	10-32 stainless steel
Enclosure Size	152 mm x 152 mm x 102 mm6.0" x 6.0" x 4.0"
Exterior Overall Dimensions	192 mm x 188 mm x 120 mm7.6" x 7.4" x 4.7"
Glands Included	2 × (3124) 4 × (3125)
Labels Included	30 Basic DC (4218)Panel Voltage ID 12V and 24V DC
LEDs Installed	6 x amber ON indicating 12/24V DC (8033)
Mounting Hardware	Ø 1/4", #12, (6 mm)
Temperature Range	-40°C to 85°C
