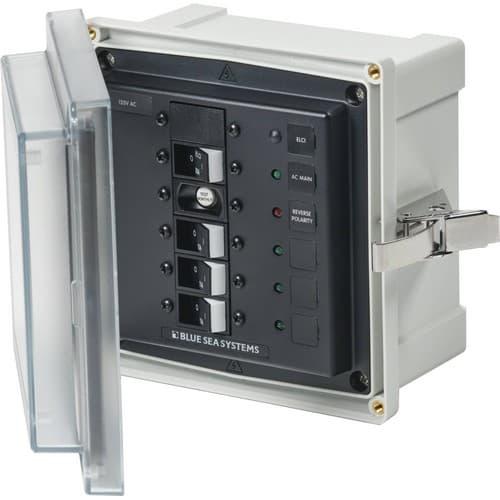

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 3128, Enclosure SMS Panel 120VAC ELCI 30A/3CB

  • Model: 3128
  • GTIN: 00632085031282
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$962.83 $740.64

Manufacturer Info

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of AC shore power inlet.
  • Models available with ELCI Main circuit breakers for 120V 30A, 120V 50A, and 120/240V 50A
  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication
  • Instructions | Download
  • Wiring Diagram | Download
Specifications
Circuit Breaker Type1 × ELCI Main 120V, 30A, 30mA (3102)3 x Branch, 15A (7403)
Cover Screws and Hardware10-32 stainless steel
Enclosure Size152 mm x 152 mm x 102 mm6.0" x 6.0" x 4.0"
Exterior Overall Dimensions192 mm x 188 mm x 120 mm7.6" x 7.4" x 4.7"
Glands Included2 × (3124) 4 × (3125)
Labels Included1 × AC Main, 1 Reverse Polarity1 × ELCI, 30 Basic AC (4206)Panel Voltage ID
LEDs Installed1 × red Reverse Polarity 120V AC (8066)4 × green ON indicating 120V AC (8034)
Mounting HardwareØ 1/4", #12, (6 mm)
Temperature Range-40°C to 85°C
