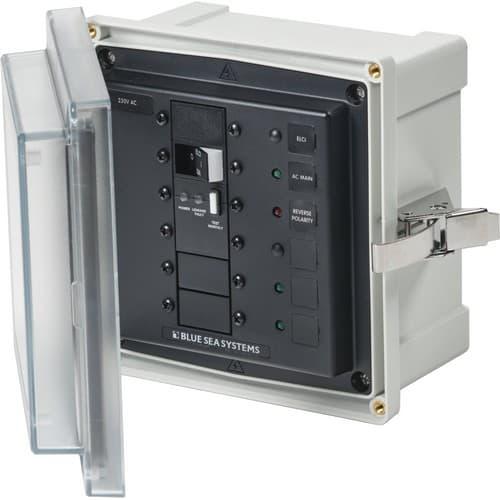

Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of AC shore power inlet.

• Models available with ELCI Main circuit breakers for 120V 30A, 120V 50A, and 120/240V 50A
• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication
• Instructions | Download
• Wiring Diagram | Download

Specifications
Circuit Breaker Type	1 × ELCI Main 230V 32A, 30mA (3092)
Cover Screws and Hardware	10-32 stainless steel
Enclosure Size	152 mm x 152 mm x 102 mm6.0" x 6.0" x 4.0"
Exterior Overall Dimensions	192 mm x 188 mm x 120 mm7.6" x 7.4" x 4.7"
Glands Included	2 × (3124) 3 × (3125)
Labels Included	1 × AC Main, 1 Reverse Polarity1 × ELCI, 30 Basic AC (4206)Panel Voltage
LEDs Installed	1 × red “Reverse Polarity” 230V AC (8166)3 × green ON indicating 230V AC (8134)
Mounting Hardware	Ø 1/4", #12, (6 mm)
Temperature Range	-40°C to 85°C
