Manufacturer Info

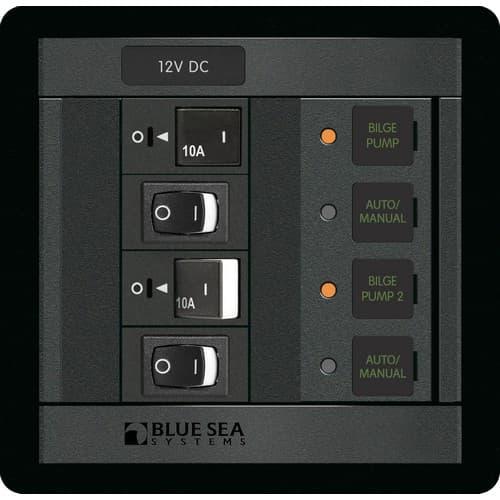

Controls two bilge pumpsRestricted-off circuit breakers and manual override switches
- On-indicating LED indicates power is available at the bilge pump float switch
- Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation
- Wiring Diagram | Download
- Common Application Diagram | Download
| Specifications | |
|---|---|
| Nominal Voltage | 12V DC |
| Height | 4.75in (120.65 mm) |
| Width | 4.88in (123.95 mm) |
| Weight | 0.67lb (0.3 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 2 | 7427 | A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A |
| 2 | 7480 | Rocker Switch SPST - ON-OFF |
| Optional Accessories |
|---|
| Any Conversion Kits |
