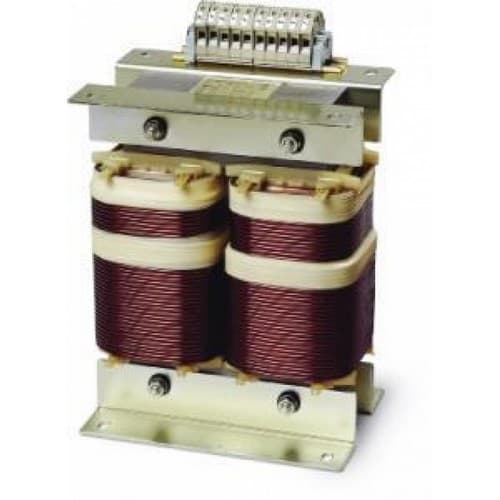

The images shown are for illustration purposes only and may not be an exact representation of the product

Mastervolt, 85001000, TRANSFORMER, ISOLATION, IVET 10

  • Model: 85001000
  • Manufactured by: Mastervolt
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Lead Time To Ship May Vary
Price:

$3,902.08 $3,001.60

Manufacturer Info

IVET 10

A safe connection between vessel and shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on board power prevents any electrical corrosion of metal parts while keeping you earthed.

IVET Heavy-duty Series

High-output E-core isolation transformer without casing, for self installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.

Mastervolt recommends to install the IVET heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.
  • High-quality isolation transformers without casing for self installation.
  • Optional Soft Start, in synthetic casing.
  • Capacities of 2.5 kW to 22 kW.
  • Product Specifications | Download
General specifications
Output voltage (5 %)120/220/240 V
Output frequency range45-65 Hz
Input voltage range110/220/240 V
Input frequency range45-65 Hz
Nominal input current (230 V)44 A
Galvanic isolationyes
Efficiency> 93 %
Power10.000 W
Dimensions, hxwxd 430 x 280 x 240 mm 16.9 x 11.0 x 9.4 inch
Weight 75 kg 165.3 lb
ComplianceCE, ABYC
Technical specifications
TechnologyE-core
Earth leakage protectionno
No-load power consumption< 10 W
Temperature range (ambient temp.) 0 C to 40 C, derating power > 40 C 32 F to 104 F
Coolingnatural cooling
Protection degreeIP00
Operating humiditymax. 95 %
Soft startoption
MasterBus compatibleno
