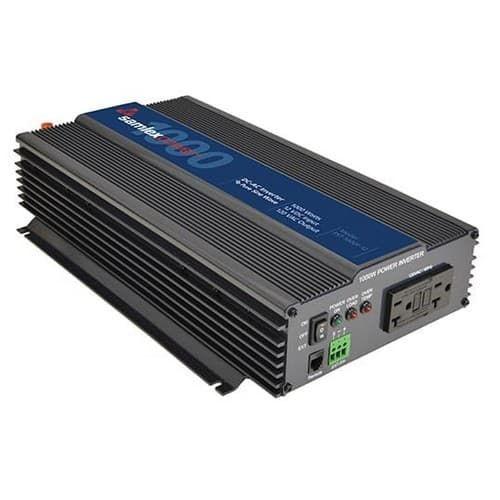

This high efficiency DC-AC inverter converts 12 Volts DC to 1000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. Features include Ignition ON/OFF - 1 wire input, overload protection, low battery alarm / shut down, low idle power draw. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
3 Year Limited Warranty
Features
Applications
3 Year Limited Warranty
Features
- Wide operating temperature range: -13F to 131F / -25?C to +55?C
- Wide operating DC input range: 10.7 - 16.5 VDC
- Ignition ON/OFF - 1 wire input
- High efficiency and low interference
- Temperature controlled cooling fan - reduces energy consumption
- Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
- UPC - Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit.
- Low idle power draw
- Dual GFCI protected AC outlets
- Optional remote control (sold separately): Model RC-15A
- Comes with pin-type battery cable lugs
- Product Manual | Download
- Samlex Specifications (EN) | Download
- Samlex Specifications (ES) | Download
- Input: 12 VDC
- Output: 120 VAC
- Watts: 1000 Watts
- Surge: 2000 Watts
- Remote Control: RC-15A (sold separately)
- Weight: 8.8 (lbs)
- Weight: 4.0 (kg)
- Dimensions: 9.37 x 15.63 x 3.23 (in)
- Dimensions: 238 x 397 x 82 (mm)
- Safety: ETL to UL Standard
Applications
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
