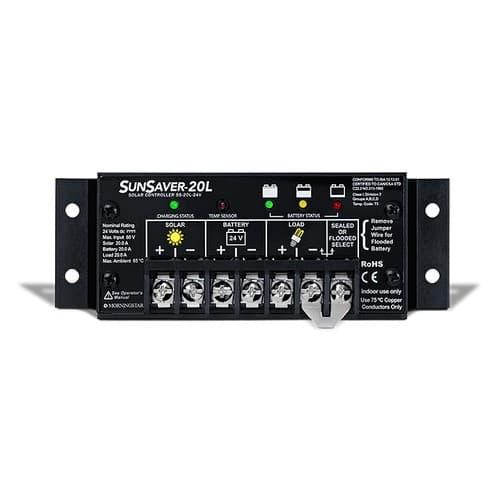

Morningstars SunSaver is the worlds leading small solar controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller.

Warranty

• 5 Years

Model Numbers

• SS-10L-24V, SS-10L-12V, SS-6-12V, SS-6L-12V, SS-20L-12V, SS-10-12V, SS-20L-24V

Key Features and Benefits

• Seven versions available
• 100% solid state
• Series design (not shunt)
• True 0 to 100% PWM duty cycle
• Setpoint accuracy 12V: +/-25mV 24V: +/-48mV
• Fully encapsulated in epoxy potting
• Marine rated terminals / anodized case
• Temperature compensation
• Sealed / Flooded battery select
• Parallel for 40 amps or more
• Product Specifications | Download

SunLight Electrical Specifications	12 Volt	24 Volt
Rated Solar Input	10/20 A
Rated Load	10/20 A
25% Current Overload	5 min.
Regulation Voltage: Sealed Battery	14.1 V	28.2 V
Flooded Battery	14.4 V	28.8 V
Load Disconnect	11.7 V	23.4 V
LVD Reconnect	12.8 V	25.6 V
Temp. Comp. (mV/C)	-27	-54
Self-consumption	8 mA	9 mA
Operating Temp.	-40 to +85C
