Manufacturer Info

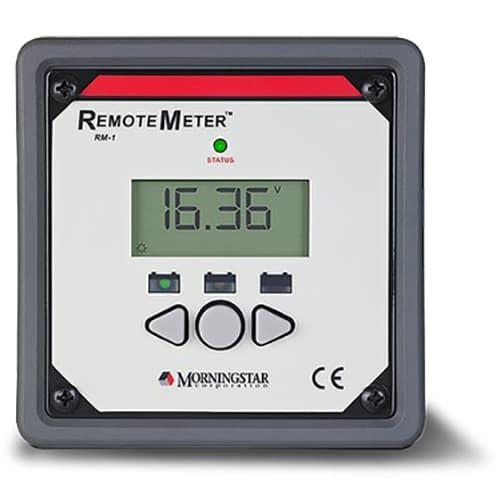

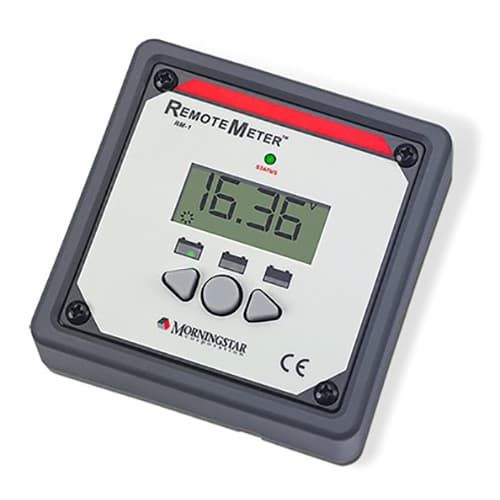

Morningstars Remote Meter (RM-1) is a universal, four digit displaywith custom icons that is compatible with several Morningstarcontrollers and inverters. This meter provides comprehensive systeminformation for easy monitoring including voltage, current andtemperature.
Compatible With
Compatible With
- SunSaver Duo controller
- SunSaver MPPT controller
- SureSine inverter
- 5 Year
- RM-1
- Provides Important Information
- Easy to Install
- Easy to Use
- Low Self-Consumption
- Backlight off 6mA
- Backlight on 15mA
- Mount in the wall or on the wall
- Adjustable Settings
- Product Specifications | Download
Electrical Specifications | |
Self-consumption: | Backlight off 6 mA Backlight on 15 mA |
Minimum Operating Voltage | 8 V |
Mechanical Specifications | |
Connector type | RJ-11 (6 pin) |
Faceplate dimensions | 9.5 x 9.5 cm / 3.8 x 3.8 in. |
Faceplate material | Powder coated steel |
Meter back dimensions | 7.4 cm / 2.9 in. diameter 2.8 cm / 1.1 in. deep Fits 7.6 cm / 3 in. round hole |
Frame dimensions | 11.4 x 11.4 x 3.5 cm 4.5 x 4.5 x 1.4 in. |
Frame material | PBT pastic |
Meter cable | 10 m / 33 ft (6 conductor) May be extended to: 30 m /100 ft |
Meter cable temp. rating | 60 C / 140 F |
Meter weight | 135 g / 0.3 lbs |
Environmental Specifications | |
Ambient Temperature | —20 C to +60 C |
Storage Temperature | —30 C to +80 C —22 F to +176 F |
Humidity | 100% |
Certifications | CE Compliant RoHS Compliant Manufactured in a certified ISO 9001 facility |
