Replacement OEM A/C Controls - Improved Micro-Air Marine Redesigns
The Micro-Air MAQ board is a newly-manufactured, footprint-compatible, and functionally-compatible replacement control board for the popular Q-Logic cabin control used in marine applications. Its design, components, and reliability are superior to the OEM original.
The MAQ supports all of the same displays, uses the same 6-pin RJ-12 (straight through) display cable, and the uses the same 3kohm thermistors.

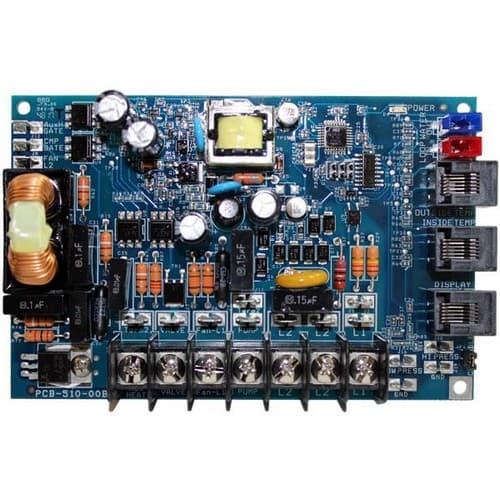

This board is 5.8" x 3.6" [14.7cm x 9.1cm]. It features a seven screw terminal electrical block and three 6-pin connectors on one end for display, inside and outside temperature. Factory boards may have either of the red or blue connectors or none at all. Most wiring connections are made to the spade terminals on the board.
The board is compatible with Cruisair/Dometic Q-Logic control systems. It replaces Dometic part number 701800004 control boards. This board varies slightly from the original so please consult our replacement reference document for details during installation.
Benefits/Notes
The Micro-Air MAQ board is a newly-manufactured, footprint-compatible, and functionally-compatible replacement control board for the popular Q-Logic cabin control used in marine applications. Its design, components, and reliability are superior to the OEM original.
The MAQ supports all of the same displays, uses the same 6-pin RJ-12 (straight through) display cable, and the uses the same 3kohm thermistors.
- MAQ Replacement Reference Document | Download
This board is 5.8" x 3.6" [14.7cm x 9.1cm]. It features a seven screw terminal electrical block and three 6-pin connectors on one end for display, inside and outside temperature. Factory boards may have either of the red or blue connectors or none at all. Most wiring connections are made to the spade terminals on the board.
The board is compatible with Cruisair/Dometic Q-Logic control systems. It replaces Dometic part number 701800004 control boards. This board varies slightly from the original so please consult our replacement reference document for details during installation.
Benefits/Notes
- Better Than The Originals
- Identical Operation
- Newly Manufactured
- Footprint-Compatible
