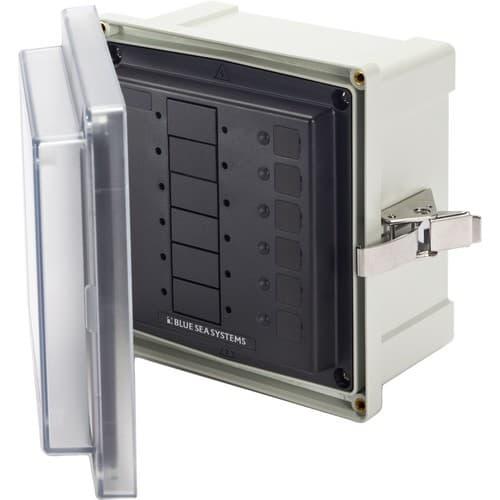

Blue Sea Systems, 3113, SMS Surface Mount System Panel Enclosure - 6 Circuit Blank
Manufacturer Info
Features
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included

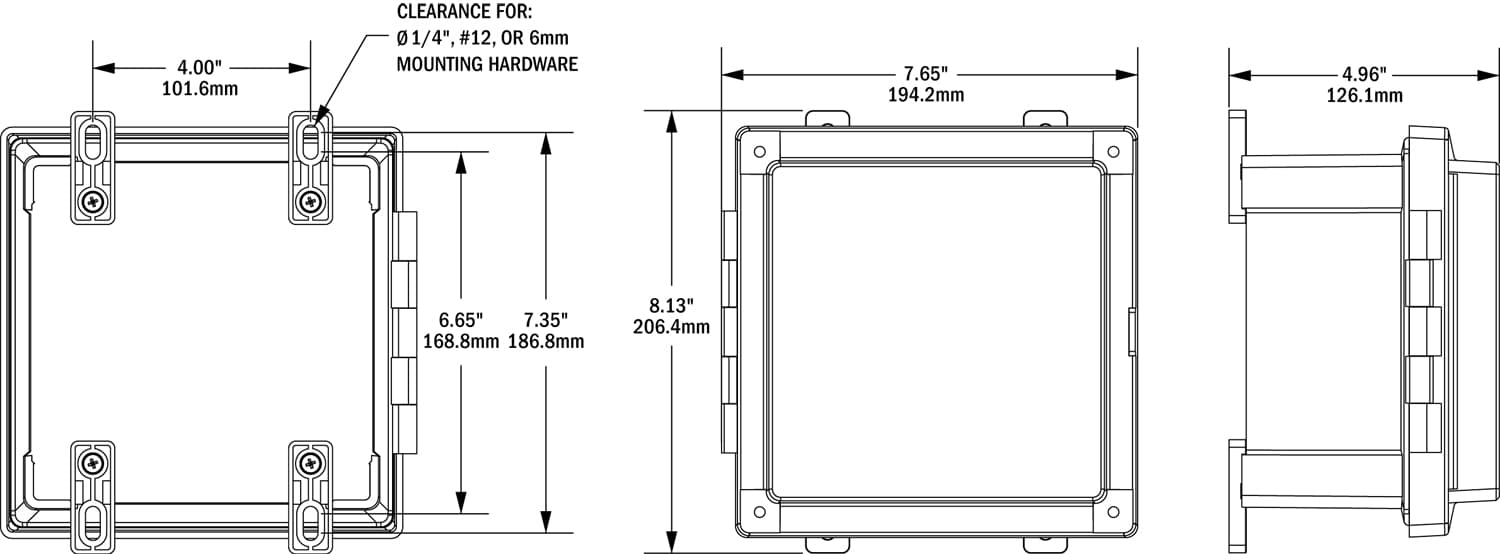

- Dimensioned Drawing
- Instructions
| Specifications | |
|---|---|
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0" x 6.0" x 4.0"(152mm x 152mm x 102mm) |
| Exterior Overall Dimensions | 7.6" x 7.4" x 4.7"(192mm x 188mm x 120mm) |
| Mounting Hardware | 1/4" Diameter, #12 (6 mm) |
| Weight | 7.00lb (3.18 kg) |
