The images shown are for illustration purposes only and may not be an exact representation of the product

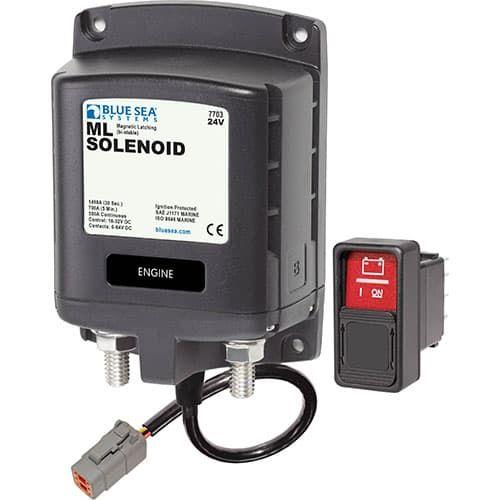

Blue Sea Systems, 7703100, ML-Solenoid Switch 24V
- Model: 7703100
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required - 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Remote Control Contura Switch included
- Instructions | Download
- Dimension Drawing | Download
| Specifications |
| Control Circuit Connection | Deutsch DTM |
| Nominal Voltage | 24V DC |
| Manual Control | No |
| Coil Function | Bi-Stable |
| Mounting | #10 |
| Amperage Operating Current continuous | 0A |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cable Size to Meet Ratings | 2x (4/0) |
| Stud Material | Tinned Copper |
| Switching Cycles | 100000 |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75lb (0.79 kg) |
| Qty | PN | Product |
| 1 | 2145 | SPDT Remote Control Contura Switch - (ON)-OFF-(ON) |
| Optional Accessories |
| 9160 | ML Series Link Bus |
