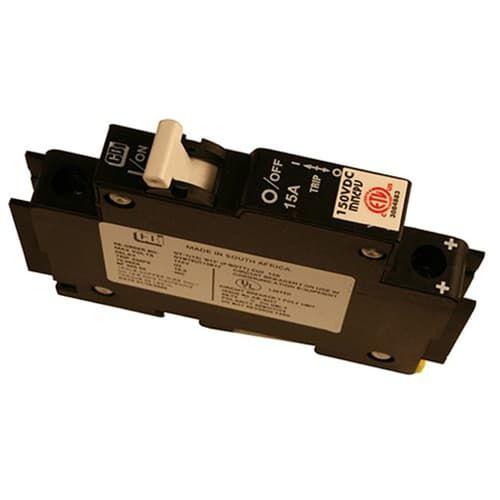

The images shown are for illustration purposes only and may not be an exact representation of the product

Midnite Solar, MNEPV8, Circuit Breaker, 8A 150VDC, 1-Pole, DIN Mount

Model: MNEPV8
Manufactured by: Midnite Solar
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
In Stock
Out of Stock

Price:

$25.31 $19.47

Manufacturer Info

Other products

150VDC din rail mount breaker (13mm Wide).

Note: Branch circuit rated 489A
MidNites breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

Environmental Rating - Type 1 (Indoor)
DC Voltage Rating - 150VDC
Wire Size Range - 14 to 6 AWG
Width - .51 in (13mm)
Number of poles - 1
10,000 AIC
MNEPV1 to MNEPV63 Dim Drawing
MNEPV - Series Circuit Breakers Data Sheet
Q-Series Breaker Specifications
Breaker and Busbar Torque Specs

MNEPV breakers are the same as CBI QY breakers except the standard used is inadequate for the solar industry. MidNite breakers have been evaluated by ETL to 150VDC and are listed for US and Canada. All of the NRTL listings still apply. Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry.

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)

Listed for US & Canada
