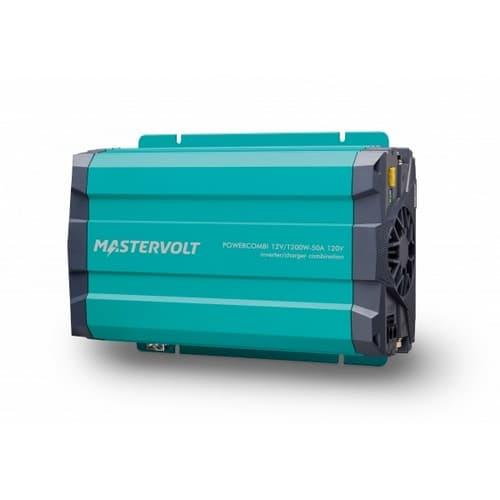

PowerCombi 12/1200-50
Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming - the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries - including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming - the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries - including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
- Product Specifications | Download
| Specifications battery charger | |
| Input voltage range | 10 - 15.5 V |
| Nominal input voltage | 12 V |
| Max. charge current at 25 C / 77 F | 50 A DC |
| Specifications transfer system | |
| Transfer speed | 30 A (10ms) |
| Communication & monitoring | |
| Communication | MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900) |
| General specifications | |
| Flat battery support (minimum charging) | no (6 V) |
| Continuous power at 25 C / 77 F, cos phi 1 | 1200 W |
| Continuous power at 50 C / 122 F, cos phi 1 | 1200 W |
| Surge power (3s) | 2400 W |
| AC voltage / frequency | 120 V - 50/60 Hz selectable HF - pure |
| Idle consumption | 25 W |
| Dimensions, hxwxd | 386 x 251 x 116 mm 15.2 x 9.9 x 4.6 inch |
| Weight | 4.55 kg 10.0 lb |
| Approvals | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending, specifications subject to change) |
| Technical specifications | |
| Battery types | flooded, Gel, AGM, custom |
| Temperature range (ambient temp.) | -20 C to 60 C -4 F to 140 F |
