Manufacturer Info
Features
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes DC shunt

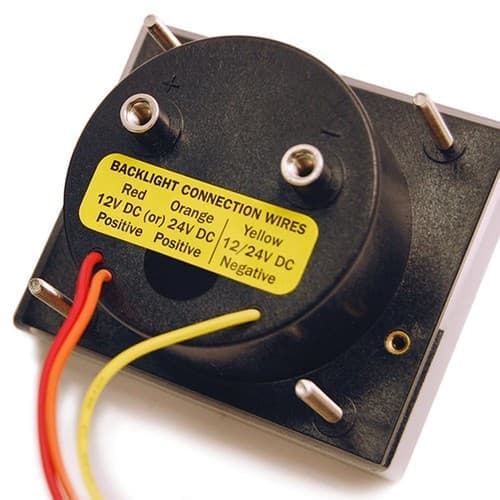

- Backlit meter face (separate 12 or 24V DC backlight connections)
- Instructions
- Mounting Diagram (surface mount)
- Mounting Diagram (panel mount)
| Specifications | |
|---|---|
| Meter | Current |
| Face Size | 2.75in (69.85 mm) |

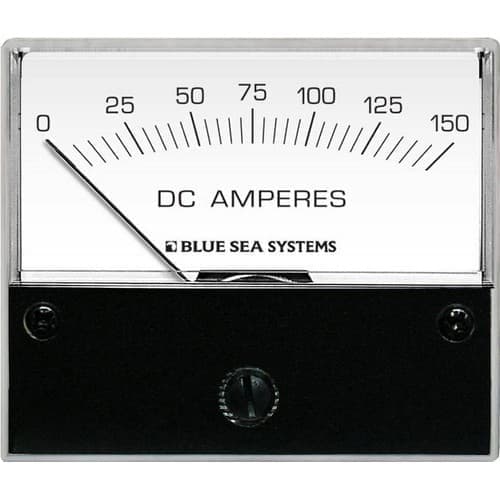

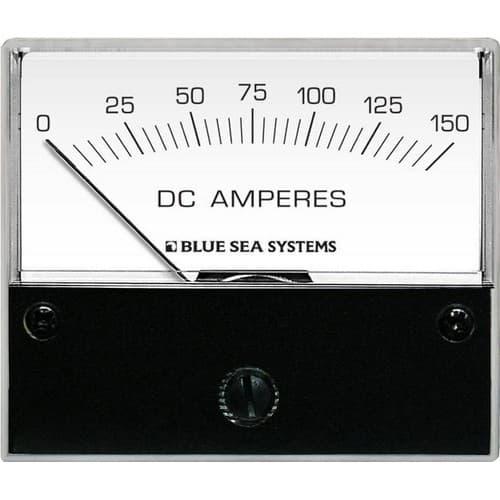

| Function | 0 to 150A |
| Backlighting Amperage | 16mA @ 12V DC20mA @ 24V DC |
| Meter Current | 1mA at full scale |
| Shunt Type | External 50mV@full scale |
| Weight | 0.60lb (0.27 kg) |
