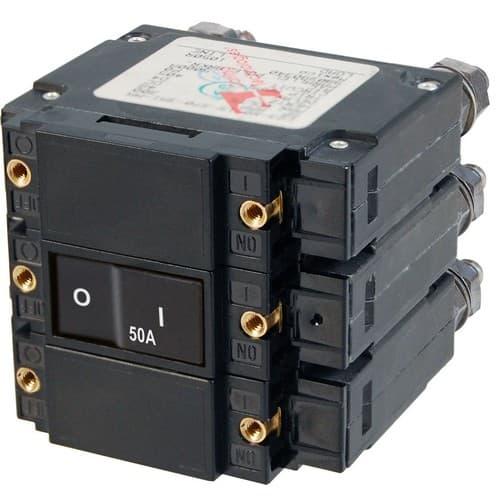

Blue Sea Systems, 7565, C-Series Flat Rocker Circuit Breaker - Triple Pole 50A AC
- Model: 7565
- GTIN: 00632085075651
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features - 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
- Double pole can be used as 120 Volt AC main circuit breaker to switch hot and neutral
- Triple pole can be used as 240 Volt AC main circuit breaker to switch both lines (hots) and neutral
- Circuit breakers will trip all poles if any one pole trips
- “Trip Free” design cannot be held “ON” during fault current condition

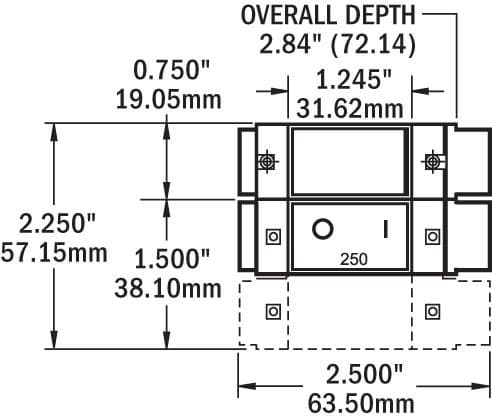

- Dimensioned Drawing

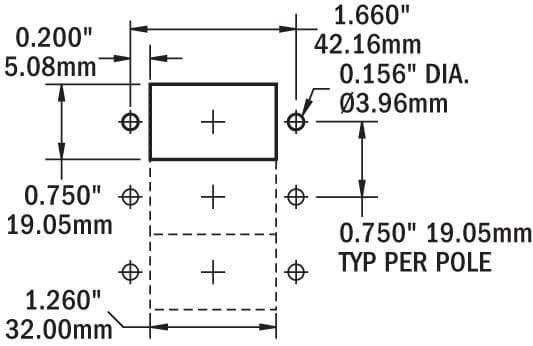

- Cutout Template
| Specifications |
|---|
| Amperage | 50A AC |
| Actuator Style | Flat Rocker |
| Poles | 3 |
| Maximum Voltage | 120V AC240V AC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 0.93lb (0.42 kg) |
