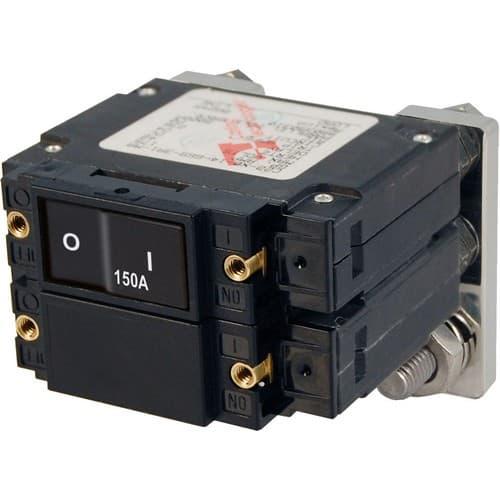

Blue Sea Systems, 7475, C-Series Flat Rocker Circuit Breaker - Double Pole 150A
- Model: 7475
- GTIN: 00632085074753
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features - Paralleled poles have 5/16" stud on bus
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidental switching
- Color actuator indicates “OFF” position
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free” - cannot be held closed after trip
- Instructions
- Dimensioned Drawing
- Cutout Template
| Specifications |
|---|
| Amperage | 150A DC |
| Actuator Style | Flat Rocker |
| Poles | 2 |
| Maximum Voltage | 120V AC240V AC48V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 48V DC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Screw | 6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 0.64lb (0.29 kg) |
