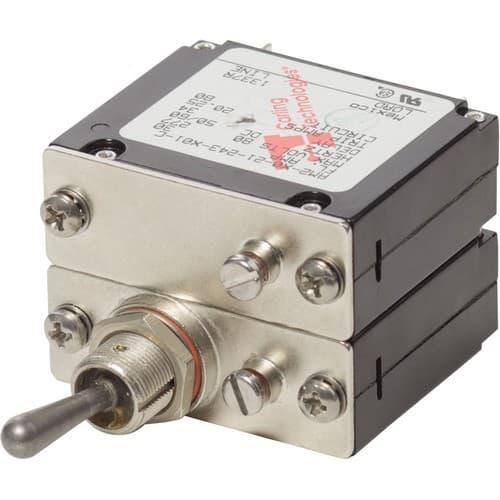

Blue Sea Systems, 7315, COTS Military Grade A-Series 30 Amp
- Model: 7315
- GTIN: 00632085073152
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
May be suitable for use when military specifications are required under CFR 46.
| Specifications |
|---|
| Amperage | 30A |
| Actuator Style | Metal Toggle |
| Poles | 2 |
| Maximum Voltage | 277V AC65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - Trip free |
| Interrupt Capacity | 1500A AC7500A DC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Boss | 1/2-32 Hex Nut SS |
| Mounting Nut Torque | 30in-lb (3.39 Nm) |
| Mounting Screw | #6-32 SS |
| Mounting Screw Torque | 7 in-lb (0.79 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 6000 Electrical4000 Mechanical |
| Terminal Screw | #10-32 SS |
| Weight | 0.13lb (0.06 kg) |
