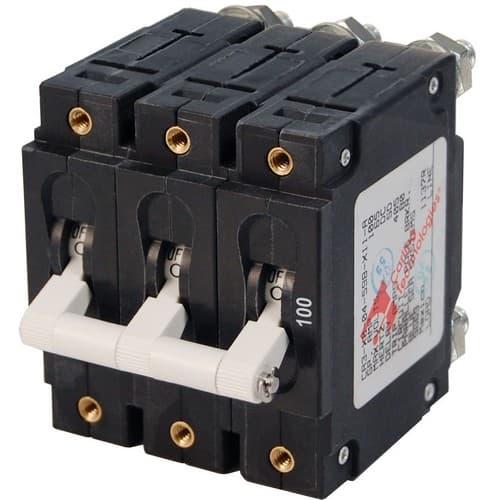

Blue Sea Systems, 7290, C-Series White Toggle Circuit Breaker - Triple Pole 100 Amp
- Model: 7290
- GTIN: 00632085072902
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features - 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
- Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
- Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral
- Double and triple pole circuit breakers will trip all poles will trip if any one pole trips
- “Trip Free” design cannot be held “ON” during fault current condition
- Dimensioned Drawing for Double Pole
- Dimensioned Drawing for Triple Pole
| Specifications |
|---|
| Amperage | 100A AC |
| Color | White |
| Actuator Style | Toggle |
| Poles | 3 |
| Maximum Voltage | 120V AC240V AC80V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 125V AC5000A @ 240V AC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 0.90lb (0.41 kg) |
