Blue Sea Systems, 7267, C-Series White Toggle Circuit Breaker - Double Pole 150 Amp
- Model: 7267
- GTIN: 00632085072674
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Features - Paralleled poles have 5/16" stud on bus
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip

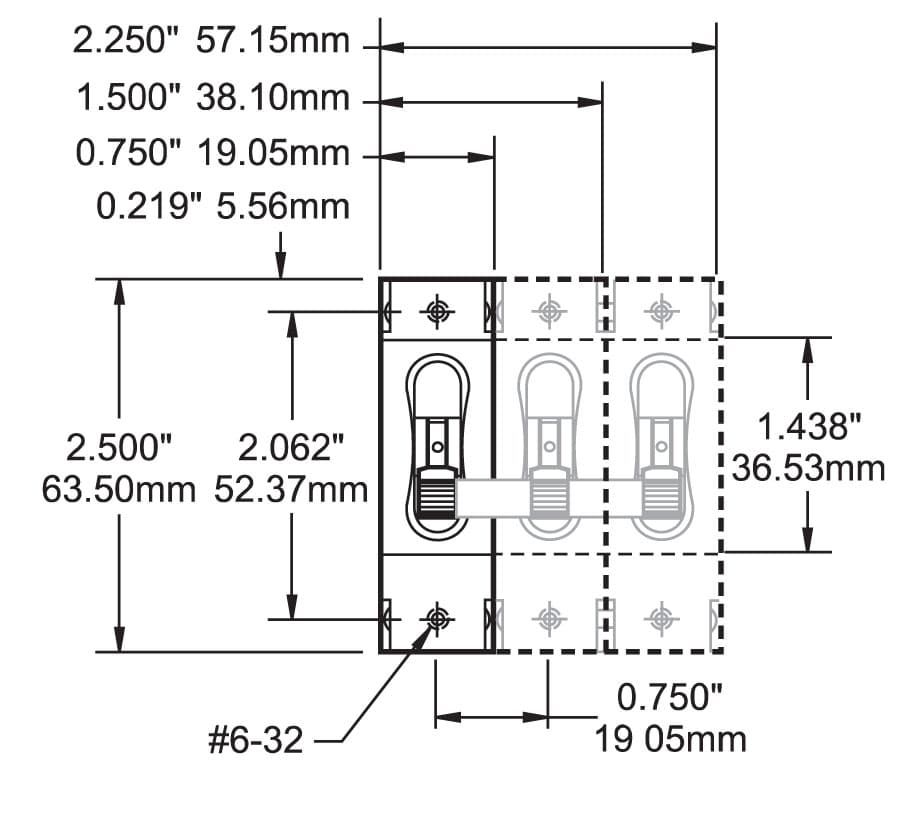

- Dimensioned Drawing
| Specifications |
|---|
| Amperage | 150A DC |
| Color | White |
| Actuator Style | Toggle |
| Poles | 2 |
| Maximum Voltage | 120V AC240V AC65V DC |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Terminal Stud Torque | 35 in-lb (3.95 Nm) |
| Interrupt Capacity | 5000A @ 65V DC |
| Minimum Operating Temperature | -40 C |
| Maximum Operating Temperature | 85 C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Switching Cycles | 10000 |
| Terminal Stud | 1/4-20 Tin-Plated Brass |
| Weight | 0.64lb (0.29 kg) |
