The images shown are for illustration purposes only and may not be an exact representation of the product

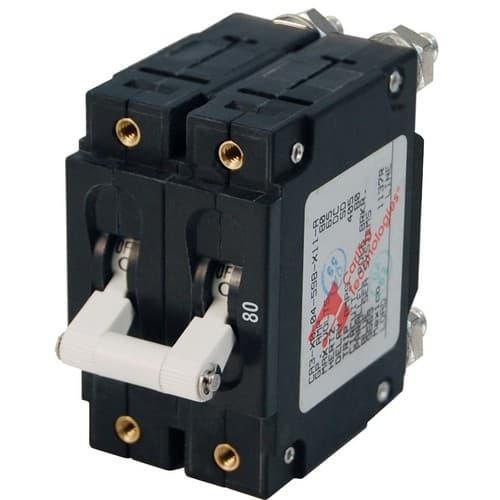

Blue Sea Systems, 7256, C-Series White Toggle Circuit Breaker - Double Pole 80 Amp

Model: 7256
GTIN: 00632085072568
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$139.66 $107.43

Manufacturer Info

Other products

Features

Provides overcurrent protection for inverters, bow thrusters, and windlasses
Combines switching and circuit protection into a single device
"Trip Free" - cannot be held closed after trip

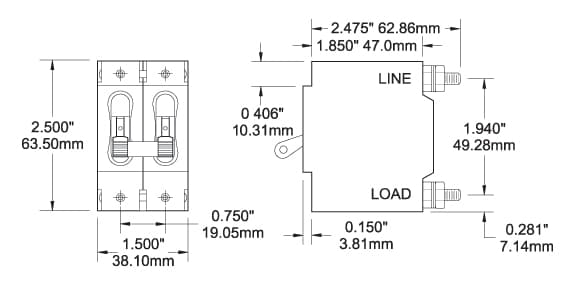

Dimensioned Drawing for Double Pole
Dimensioned Drawing for Triple Pole

Specifications
Amperage	80A AC
Color	White
Actuator Style	Toggle
Poles	2
Maximum Voltage	120V AC240V AC80V DC
Circuit Breaker Type	Magnetic Hydraulic - trip free
Terminal Stud Torque	35 in-lb (3.95 Nm)
Interrupt Capacity	5000A @ 240V AC
Minimum Operating Temperature	-40 C
Maximum Operating Temperature	85 C
Mounting Screw	#6-32 Stainless Steel
Mounting Screw Torque	6 in-lb (0.68 Nm)
Switching Cycles	10000
Terminal Stud	1/4-20 Tin-Plated Brass
Weight	0.70lb (0.32 kg)
