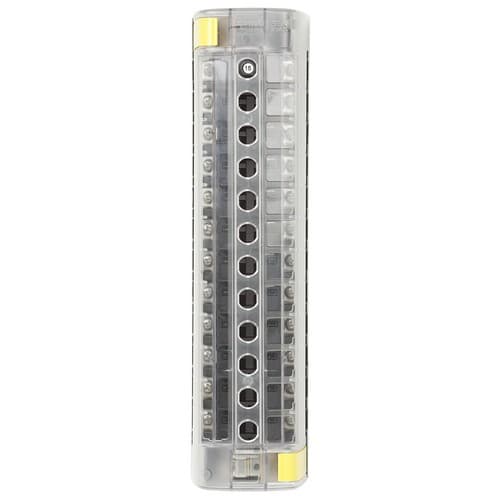

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Features

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals

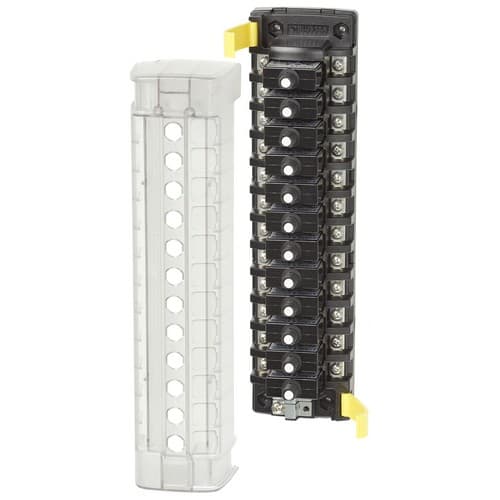

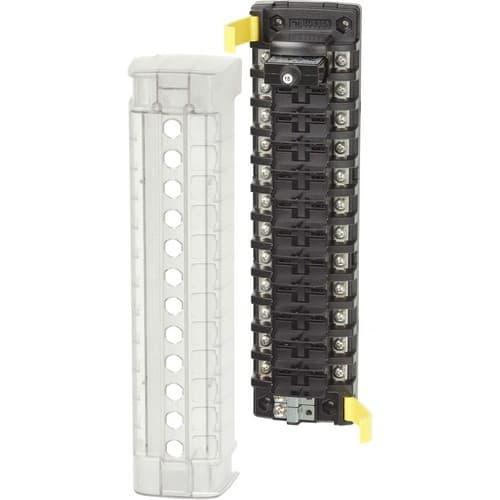

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals

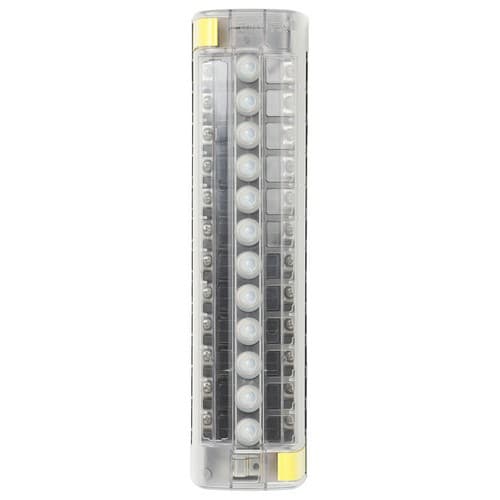

• Optional push button waterproof boots or dress nuts can be installed over cover
• Accepts square labels
• Dimensioned Drawing

Specifications
Circuits	12
Maximum Amperage	32A (per circuit)40A (per jumped circuit group)
Maximum Voltage	32V DC
Mounting	#8 Screw (M4) or #8 Nut
Negative Bus	#10-32 Stud
Source	Independent Source
Minimum Operating Temperature	-10 C
Maximum Operating Temperature	60 C
Mounting Centers	10.13in (257.3 mm)
Screw Terminal Type	#8-32 Screws with Captive Star Lock Washer
Height	11.19in (284.23 mm)
Weight	1.50lb (0.68 kg)
