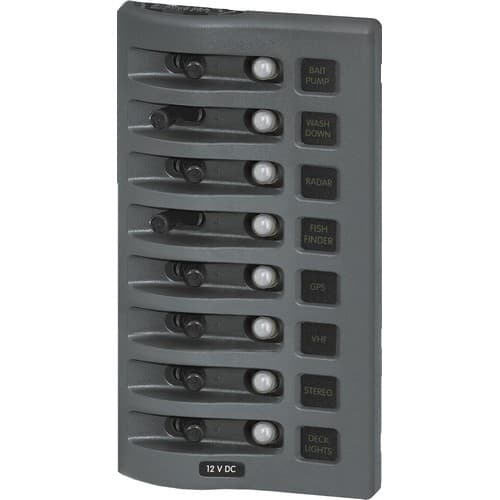

Blue Sea Systems, 4378, WeatherDeck 12V DC Waterproof Circuit Breaker Panel - Gray 8 Positions
- Model: 4378
- GTIN: 00632085043780
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 24th - Nov 30th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary

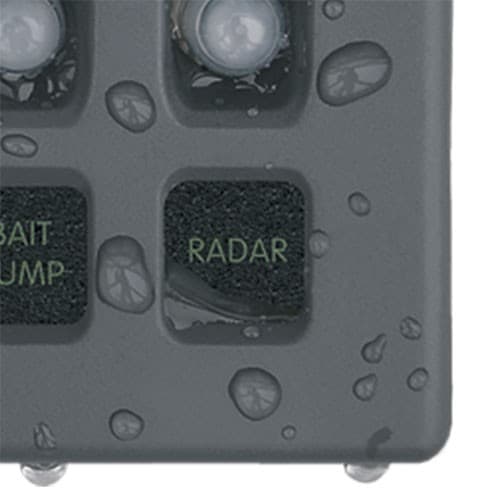

Features - Rated IP67-temporary immersion for 30 minutes

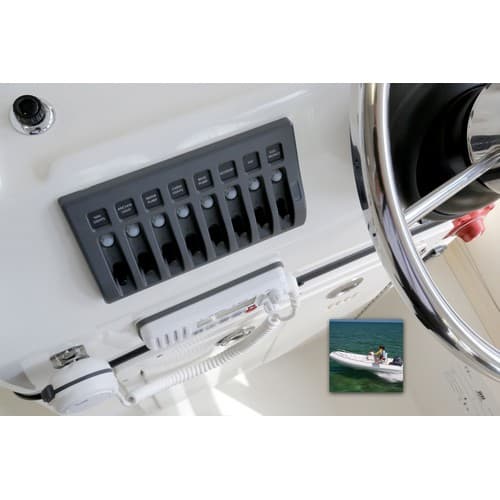

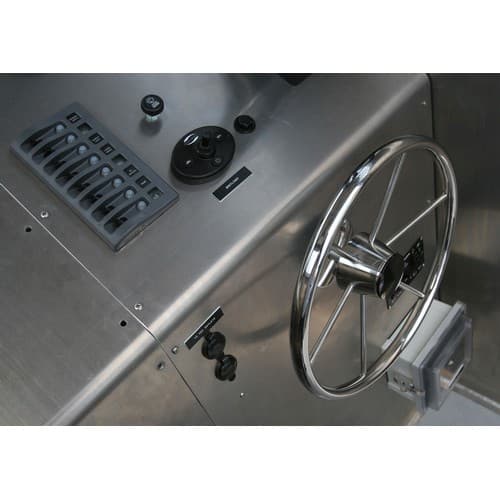

- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Available in 4 and 6 circuit models
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Instructions
- Cutout Templates
| Specifications |
|---|
| Weatherproof | Waterproof |
| Positions | 8 |
| Nominal Voltage | 12V DC24V DC |

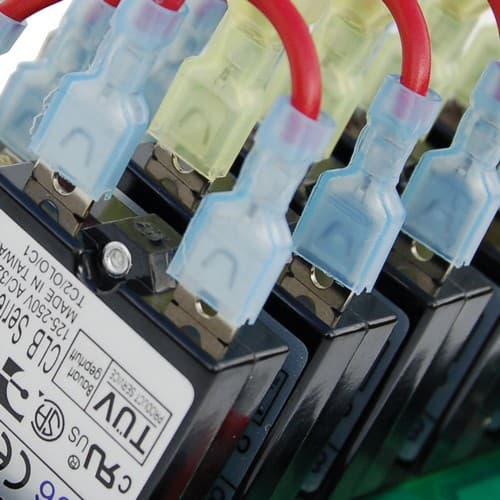

| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit)9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12 or 24V DC |
| Material | Reinforced Polycarbonate |
| Height | 7.70in (195.58 mm) |
| Width | 4.25in (107.95 mm) |
| Depth | 3.50in (88.9 mm) |
| Weight | 1.70lb (0.77 kg) |
