Blue Sea Systems, 3001, HD-Series Heavy Duty On-Off Battery Switch with AFD

Model: 3001
GTIN: 00632085030018
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: Nov 22nd - Nov 28th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$169.63 $130.49

Manufacturer Info

Other products

Switches a single battery to a single load group

Includes AFD (Alternator Field Disconnect)
Ignition protected - safe for installation aboard gasoline powered boats

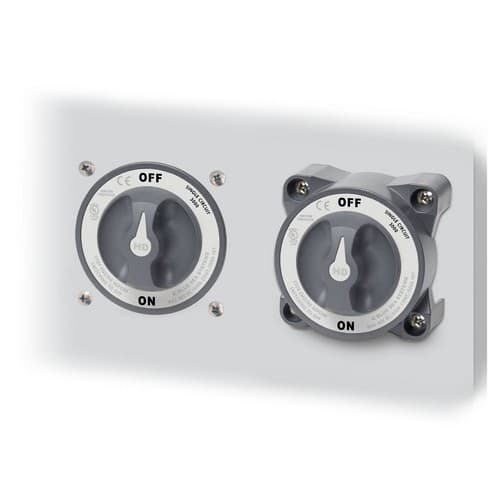

Case design allows surface or rear panel mounting
Accepts two 4/0 AWG (95mm2) battery cables
Instructions
Mounting Diagram

Specifications
Switch Type	Single Circuit ON-OFF
Color	Grey
Switch Positions	2
Battery Combine	No
Alternator Field Disconnect	Yes
Maximum Voltage	32V DC
Terminal Stud Torque	220 in-lb (24.86 Nm)
Continuous Rating	600A
Intermittent Rating	900A (5 min)
Cranking Rating 30 sec	1750A
Battery Inputs	1
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Quantity to Meet Ratings	Two Cables
Cable Size to Meet Ratings	4/0 AWG (120mm2)
Mounting Holes	Accept 1/4" (M6) Screw
Terminal Stud Size	1/2" (M12)
Weight	1.30lb (0.59 kg)
