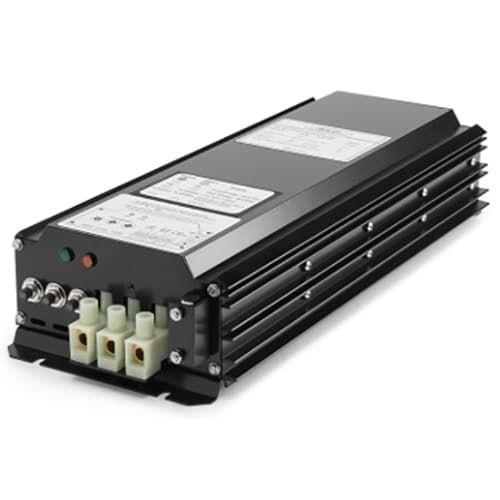

Model 6958 is designed for the emerging need to charge lithium battery banks from 12V systems. Model 6958 will output 22A @ 58V in full charge mode and can be operated while load is drawn from the battery bank. Off- the- shelf units are ideal for use with lithium iron phosphate batteries. Model 6958 is microprocessor controlled and can be programmed at factory for operation with other battery types.

General Application

• For negatively grounded systems only
• For systems not requiring input/output isolation
• For vertical or horizontal mounting
• For local or remote activatoin
• Mechanical Drawing | Download
• Technical Specifications | Download

Features

• Programmable Charge Curve
• Low Input Voltage Cutout
• Compact design
• Convection and Forced Air Cooled
• Electronic Current Limiting
• Common Input/Output Negative Terminal
• Soft start technology
• Supplied with Cable Terminals
• Available in common voltages

For Charging Batteries with the Following Technologies

• Lithium Iron Phosphate
• Lithium Ion
• Sealed Lead Acid
