Energy Storage
Save electricity bills.

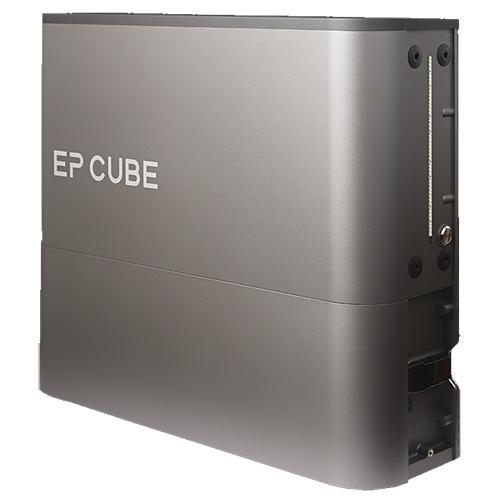

EP Cube comes with a battery bank that goes up to 19.9kWh per single unit, perfect for homeowners to storeexcess energy generated by solar system and use it for self consumption.

Modular battery
More flexible expansion.

The storage of EP Cube adopts modular design that allows homeowners to expand battery capacity flexibly.Up to 6 hybrid units can be installed in one single system in parallel, providing up to 119.9kWh energy storageand 45.6KW output power in total (19.9 kWh each), ready for larger scale applications. *

All-in-one design Less is More

EP Cube integrates a hybrid inverter, storage modules, and puts communication cables and wires together with a quick connector so as to stack modules directly, saving the installation time, space and costs.

Backup Protection
Carry on, without Hesitation

24/7 monitoring function enables it to detect outages and to energize your home seamlessly when the gridgoes down, ensuring that the electrical appliances run normally. EP Cube supports a rated output power of7.6kW, which allows high-power appliances to continue running normally even in the event of a power outage.

UL 9540A guarantee
Safer, more reliable.

EP Cube using reliable lithium iron phosphatebatteries meets the UL 9540A unit level thermalrunaway propagation test performance criteria andadopts NEMA 4X electrical enclosure, along with10-year warranty.

2 EV chargers connected
2 EVs ready to go.

EP Cube is capable of being connected to 2 EV chargers as expansion, making it perfect for homeowners whointend to prepare for electric vehicles.

Existing solar compatible
Applies for new & retrofit PV system

For homeowners that wish to include new solar systems in the future, EP Cube can take in high power solardirectly (4 MPPT per Hybrid, Max. 16A per MPPT).For existing solar system owners, EP Cube offers the choice to integrate existing solar inverters into thesystem for easier management.

Generator compatible
Consistent backup experience

EP Cube is capable of integrating a backup generator of up to 24 kW power rating into the system, providinghomeowners with a consistent backup experience

Intelligent control
Home energy management

With the intelligent App, you can monitor the real-time productionor consumption of electricity anytime, anywhere

3 operation modes
Meet your specific energy needs

EP Cube has 3 operation modes that are designed to cover a wide range of usage scenarios. Self-consumptionmode maximizes the utilization of green energy; TOU mode is best for users with TOU utility rates; Backupmode allows the EP Cube to be used as emergency backup power. Detailed settings under each mode can beadjusted via the mobile APP.

Long-term warranty
Durable product, trustworthy service

EP cube offers a warranty of 80% battery capacity after up to 10 years or 6000 power cycles

Features

• Integrated hybrid inverterSupports DC and AC PV inputSuitable for new and installed PV systems
• Modular and stackable design, easy to install and transportCapacity options from 9.9 kWh to 19.9 kWh per EP Cubeunit and up to 119.9kWh for full system
• Comprehensively guarantee household power supplySeamlessly switch to backup in case of power failure
• Lithium iron phosphate batteriesUL 9540A unit level thermal runaway test certification
• Supports Wi-Fi and Cellular network connectionRemotely monitor power generation and consumptionOTA firmware update, continuous function improvement
• Compatible with generators for long-term power outagesCan be connected to 2@60A level 2 EV chargers100% green power for electric vehicles
• Quick Installation Guide-Adding Battery Modules V1.0 | Download
• Installation Preparation Guide V1.0 | Download
• EP Cube Catalog_NA_English_V2.2 | Download
• EP CUBE User Manual_NA_English_V2.0 | Download
• EP Cube Installation Manual_NA_English_V2.4 | Download
