Charge at or away from the Doc

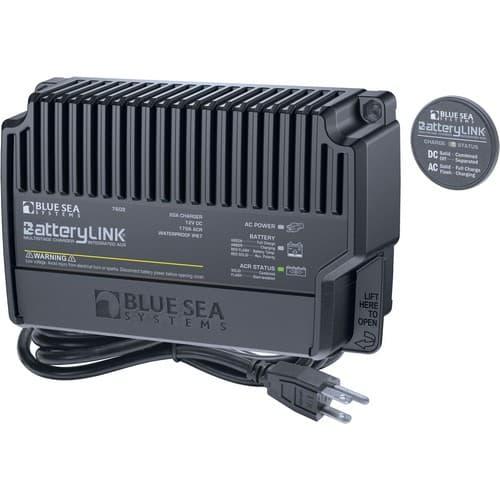

- Compact 12V 20A - 2 Bank AC Charger
- 170A Continuous ACR
- Remote Emergency Jump Start
- Battery Temperature Compensation
- Remote Display Included
- IP 67 Waterproof
| Total Output Current | 20A |
| Nominal Voltage | 12V DC |
| Number of Outputs | 1 Negative 2 Positive |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 170A |
| Universal AC Input Voltage | 90-265V AC |
| AC Input Frequency | 50/60Hz |
| Typical Float Voltage | 13.5V DC |
| Battery Types | AGM Flooded TPPL |
| Cable Size to Meet Ratings | 10 AWG Negative Cable 6 AWG Positive cable |
| Maximum Battery CCA | 850CCA |
| Maximum Cable Size | 1/0 AWG (50mm) |
| Operating Current | 10mA 60mA |
| Plug Style | North American: NEMA 5-15P |
| Recommended Battery Bank Sizes | 60Ah Minimum |
| Terminal Stud Size | 1/4"-20 |
| Warranty | 5 Year |
| Combine 30 sec | 13.5V |
| Combine 2 Min | 13.0V |
| Open 10 sec | 12.35V |
| Open 30 sec | 12.75V |
