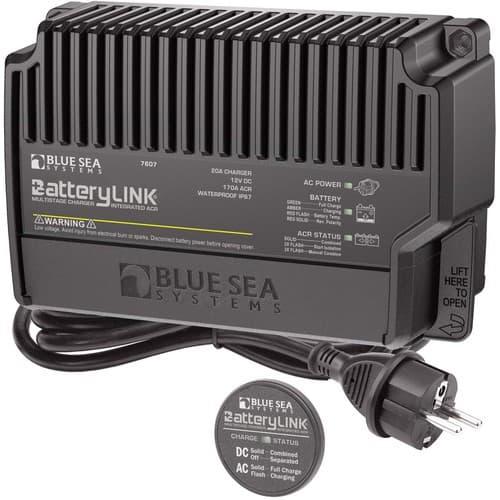

Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR)
- AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery charger
- DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR
- Battery Temperature Compensation prolongs battery life
- Start isolation protects sensitive electronics from voltage sags and spikes
- Emergency parallel allows remote ability to jump start by combining both batteries if start battery is low
- Includes LED remote indicator for charge status at the helm
- Snap-on insulating cover
- One-piece stainless flange nuts ensure safe and secure connections
| Specifications |
|---|
| Total Output Current | 20A |
| Nominal Voltage | 12V DC |
| Number of Outputs | 1 Negative2 Positive |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 170A |
| Universal AC Input Voltage | 90-265V AC |
| AC Input Frequency | 50/60Hz |
| Typical Float Voltage | 13.5V DC |
| Battery Types | AGMFloodedTPPL |
| Cable Size to Meet Ratings | 10 AWG Negative Cable6 AWG Positive cable |
| Maximum Battery CCA | 850CCA |
| Maximum Cable Size | 1/0 AWG (50mm) |
| Operating Current | 10mA |
| Plug Style | European: CEE 7/7 |
| Recommended Battery Bank Sizes | 60Ah Minimum |
| Terminal Stud Size | 1/4"-20 |
| Warranty | 5 Year |
| Combine 30 sec | 13.5V |
| Combine 2 Min | 13.0V |
| Open 10 sec | 12.35V |
| Open 30 sec | 12.75V |
