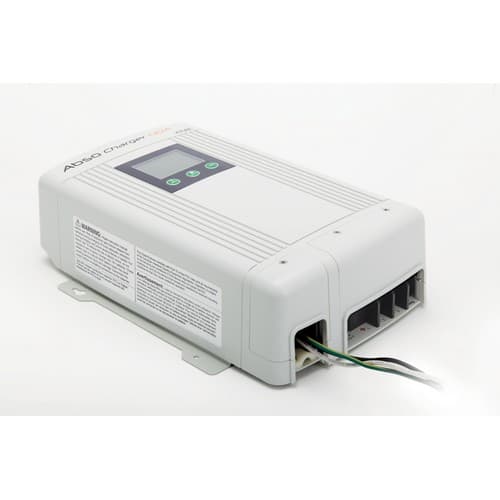

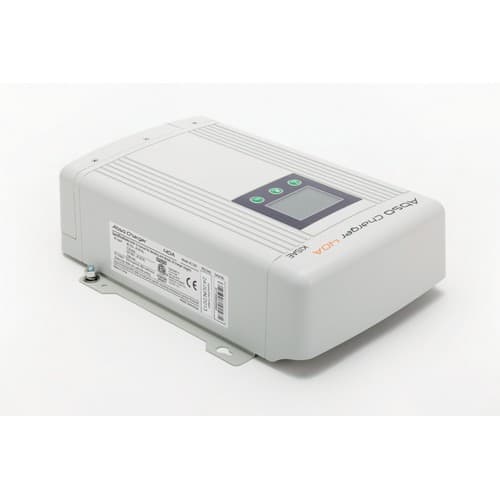

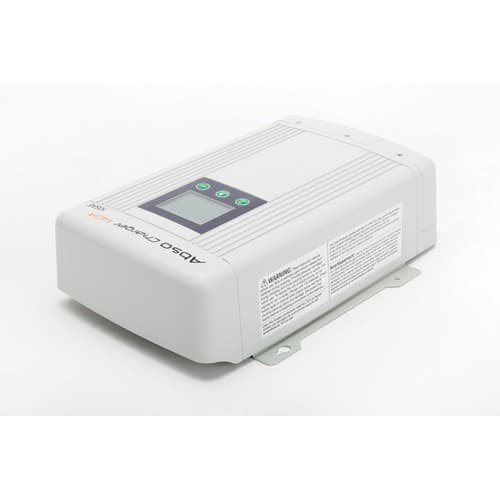

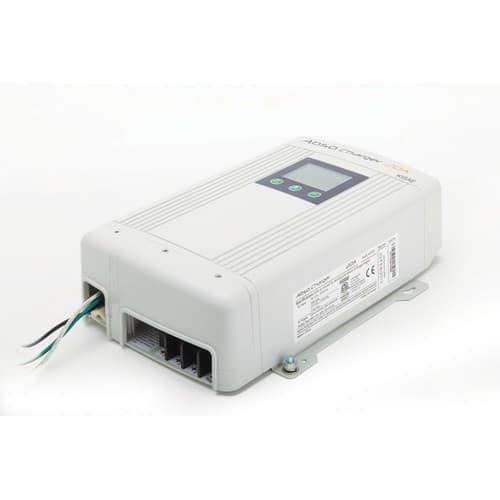

Kisae Technology, AC1240, ABSO Smart Battery Charger, 40A/12V

Model: AC1240
GTIN: 04897038150380
Manufactured by: Kisae Technology
Condition: New
Estimated Delivery: Dec 4th - Dec 10th
In Stock
Out of Stock

Price:

$345.80 $266.00

Manufacturer Info

Other products

KISAE Abso battery chargers are fully automatic multi-stage battery chargers that provide the abilityto charge 3 separate battery banks. They are the ultimate set-and-forgetcharger, designed to quickly and accurately recharge your deep cyclebatteries, whether AGM, Flooded or Lithium.

Product Features Include

Multi-Stage Battery Charging
Priority Bank Charging
Digital LCD Display
Easy Installation
Compact design and small footprint
Travel Abroad and Use Anywhere
Silent Mode: Unique setting for night-time use

Features and Benefits

Low frequency design with high surge capability to start demanding loads
True sinewave output will run heavy-duty motor loads and entertainment systems flawlessly
Low battery shutdown to prevent total battery discharge
System remote panel (included) provides vital system information
Over temperature shutdown
Mounting brackets and high quality DC connectors make installation simple
Approved to UL, CSA, and European regulatory standards
Product Specifications | Download
Product Manual | Download

Dimensions (W x L x H)

AC 1240: (2.6kg, 295 x 206 x 86 mm)

Weight

AC 1240: 5.7lb 11.6 x 8.1 x 3.4 inches

Battery Charger	AC 1240
Output Rating
Output Voltage	12V
Output Current (Maximum)	40A
DC Output
Selectable Battery Type	Gel, AGM, Flooded, Lithium, Program
Charge	14.2 – 15.5V
Float	13.4 – 13.8V
Equalize (Flooded Battery Only)	16.0V
Charging Control	Three / Two Stages, Program
DC Output Bank	Three
Parasitic Current	< 2 mA
AC Input
AC Input Voltage (Nominal)	120, 230, 240VAC
AC Input Operating Range	90 - 265VAC
AC Input Frequency Range	47 - 63Hz
Power Consumption (Full Load)	700W
Power Factor Correction	YES
Display Panel
Digital Display	LCD with back lighting
Digital Info	Voltage, Current, Status and Error Code
Protection
Reverse Battery	YES
Cooling	Forced ventilation
Output Short Circuit	YES
Ingress Protection	IP 32
Enclosure
AC Input connection	Hardwire / AC Input Cord (Schuko, UK, Australia plug)
DC Output Connection	Heavy Duty Studs
Weight	5.7 lbs
Dimension	11.6 x 8.1 x 3.4"
