Manufacturer Info

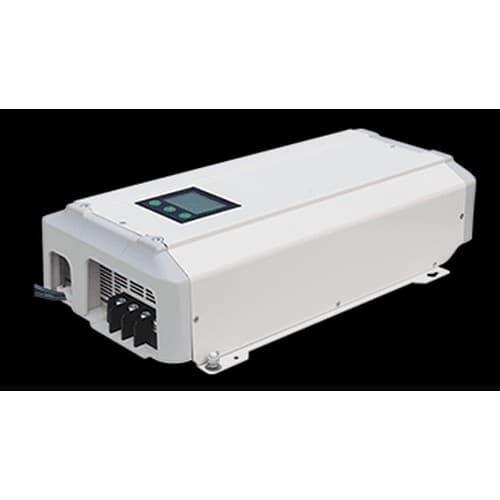

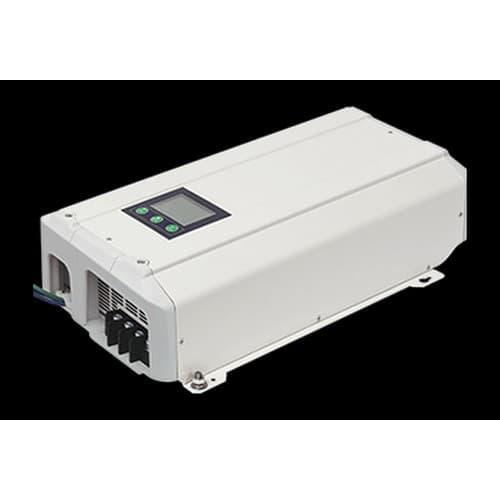

50A 24V AC Battery Charger
ABSO Product Line
KISAE's Abso Chargers are smart, multi-stage 3-bank battery chargers that use advanced algorithms to rapidly and safely replenish large capacity AGM, Gel, Flooded and Lithium batteries to peak efficiency while improving battery life.
Features Include
ABSO Product Line
KISAE's Abso Chargers are smart, multi-stage 3-bank battery chargers that use advanced algorithms to rapidly and safely replenish large capacity AGM, Gel, Flooded and Lithium batteries to peak efficiency while improving battery life.
Features Include
- Multi-stage charging.
- 3-Bank charging capability with user selectable priority setting.
- Safety tested & Regulatory Approved to cETLus standards for North America (UL & CSA).
- Safety tested & Regulatory Approved to CE standards for UK, EU, and AU/NZ.
- Part of KISAE’s impressive AC battery charger line.
- Multi-stage battery charger that ensures batteries are charged to battery manufacturer’s recommendations.
- Variable battery type settings including Gel, Flooded, AGM, and Lithium.
- Charges up to three battery banks simultaneously.
- Priority bank charging capability ensures main battery charges first.
- Silent mode offers quiet operation near sleeping quarters.
- Simple to install.
- Remote ON/OFF panel (accessory sold separately).
- Compact size for easy storage.
- AC 2450: 13.9" x 8.1" x 3.7" (295 x 206 x 86mm)
- AC 2450: 7.7 lbs. / 3.5 Kg
| Output Voltage | 24V |
| Output Current (Maximum) | 50A |
| Selectable Battery Type | Gel, AGM, Flooded, Lithium, Program |
| Charge | 38.4-31.0V |
| Float | 26.8-27.6V |
| Equalize | 32.0V |
| Charging Control | Three/Two Stages Program |
| DC Output Bank | Three |
| Parasitic Current | <2mA |
| Voltage (nominal) | 120,230,240VAC |
| Operation Range | 90-265VAC |
| Frequency Range | 47-63Hz |
| Power Consumption (full load) | 1800W |
| Power Factor Correction | Yes |
| Reverse Battery | Yes |
| Cooling | Forced Ventilation |
| Output Short Circuit | Yes |
| Ingress Projection | IP 32 |

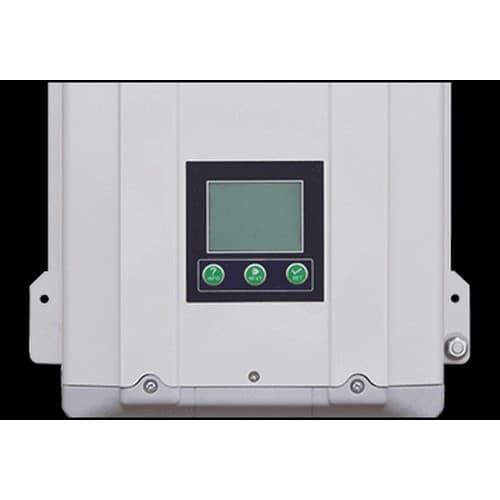

| Indicator | LCD with back lighting |
| Digital Display (LED) | Voltage, Current, Status and Error Code |
| AC Input Connection | Hardwire / AC Input Cord (Schuko, UK, Australia plug) |

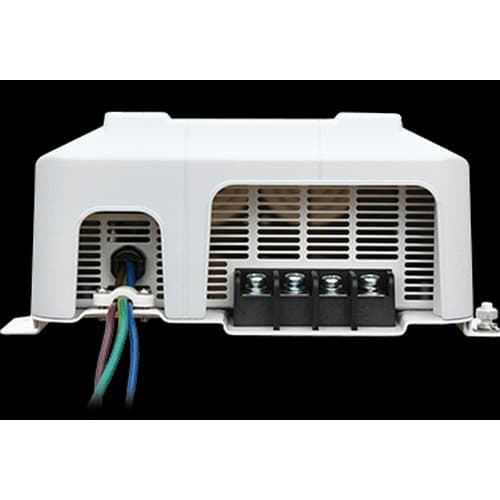

| DC Output Connection | Heavy Duty Studs |
| Weight | 14lbs/6.4kg |
| Dimensions | 9.3x16.7x4" 236x425x102.7mm |
| Remote Panel | For viewing unit status, adjusting settings, and for connecting the chargers in parallel |
| Battery Temp. Sensor | For battery charging voltage adjustment |
