MPPT multi-stage charging, better battery life

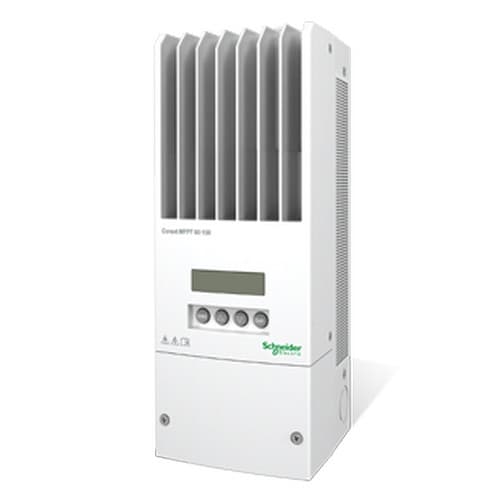

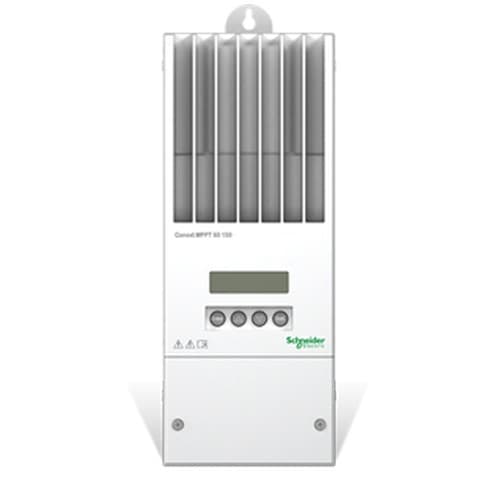

The ConextTM MPPT 60 150 is a photovoltaic (PV) charge controller that tracks the maximum power point of a PV array to deliver the maximum available current for charging batteries. When charging, the MPPT 60 150 regulates battery voltage and output current based on the amount of energy available from the PV array and state-of-charge of the battery.

Why choose Conext MPPT 60 150Higher return on investment

• Maximum Power Point Tracking (MPPT) algorithm continually seeks the maximum power available from the PV array
• Improve battery life with selectable multi-stage temperature compensated charging
• Five-year standard warranty

Flexible

• Stand-alone application or full integration with Conext XW and Conext SW inverter charger system
• Compatible with any brand of PV Module
• Available remote monitoring and configuration

Easy to install

• Configurable auxiliary output
• LCD screen with face plate buttons for configuration and system monitoring
• Integrated PV ground fault protection for negative grounded arrays
• Product Specifications | Download
• Product Manual | Download

Range of product	XW
Device short name	XW-MPPT60-150
Product or component type	Solar charge controller
Battery voltage	60 V DC48 V DC36 V DC24 V DC12 V DC

Complementary
Input voltage	150 V DC - open circuit140 V DC
Enclosure type	Ventilated
Enclosure material	Sheet metal chassis
Device mounting	Wall mounted vertical
Cable entry	7/8" and 1" knock-outs
Height	368 mm
Width	146 mm
Depth	138 mm
Product weight	4.8 kg

Environment
AWG gauge	10
Ambient air temperature for operation	-20...45C
Ambient air temperature for storage	-40...85C
Operating altitude	4572 m
Standards	UL 1741CSA C22.2 No 107.1
Product certifications	FCC Class B
Marking	CE
