The images shown are for illustration purposes only and may not be an exact representation of the product

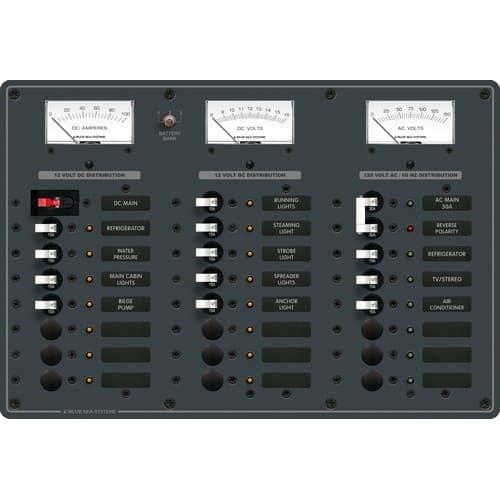

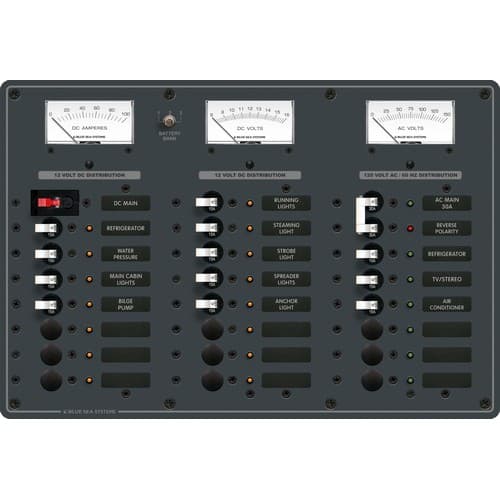

Blue Sea Systems, 8084, AC Main + 6 Positions/DC Main + 15 Positions
- Model: 8084
- GTIN: 00632085080846
- Manufactured by: Blue Sea Systems
- Condition: New
-
Estimated Delivery:
Nov 22nd - Nov 28th
- Estimated Delivery: 1 to 2 Weeks
- In Stock
- Out of Stock
-
Lead Time To Ship May Vary
Price:
$1,410.55 $1,085.04
Features- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
- Maximum panel amperage - 100 Amperes DC, 50 Amperes AC
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Detailed installation instructions and cutout template included
- Countersunk mounting holes throughout
- Includes set of 60 common AC and DC Large Format Labels
- Over 500 individual labels available
- Cutout Templates
- Instructions
| Specifications | | Positions | 6 AC15 DC |
| Nominal Voltage | 120V AC12V DC |
| Height | 10.00in (254 mm) |
| Width | 14.75in (374.65 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 8.75lb (3.97 kg) |
| Included | | Qty | PN | Product |
| 3 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (AC Branch) |
| 1 | 7238 | A-Series White Toggle Circuit Breaker - Double Pole 30A (AC Main) |
| 1 | 9353 | AC Voltmeter - 0 to 150V AC (AC Meter) |
| 9 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch) |
| 1 | 7250I | Circuit Breaker CA1 100A Red IP (DC Main) |
| 1 | DC Analog Voltmeter - 8 to 16V DC (DC Meter) |
| 1 | 8017 | DC Analog Ammeter - 0 to 100A with Shunt (DC Meter) |
| Optional Accessories | | 4029 | AC Isolation Cover - 8 Position, 1 Column |
