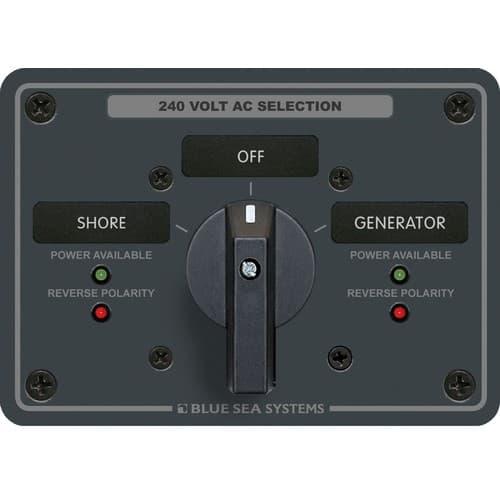

Blue Sea Systems, 8363, AC Rotary Switch Panel 65 Ampere 2 positions + OFF, 3 Pole
Manufacturer Info
Features
- Switches 2 - 120/240 Volt AC sources
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Red reverse polarity LED indicators
- Green power available LED indicators
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two or three different AC sources to one circuit
- Cutout Templates
| Specifications | |
|---|---|
| Positions | 2 + OFF |
| Nominal Voltage | 240V AC |
| Poles | 3 |
| Maximum Amperage | 65A |
| Source In | 2 |
| Height | 3.75in (95.25 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 3.65in (92.71 mm) |
| Weight | 1.41lb (0.64 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 1 | 9019 | AC Rotary Switch - OFF + 2 Positions 240V AC 65A |
| 1 | 9583 | AC Rotary Panel Labels |
