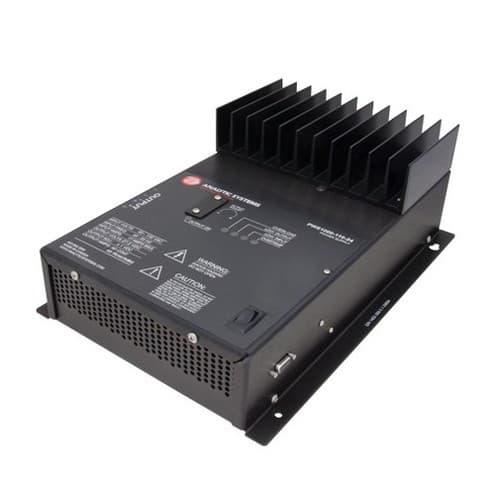

The PWS1000 Series of power supplies provides 12, 24 or 48 Volts DC at 1000 Watts of continuous power from a 110 or 220 Volt AC source.

Analytic Systems' power supplies use Switchmode technology with powerful IGBT switching transistors for reliability and efficiency with minimum size. Circuit innovations reduce output ripple to levels previously available only from bulky and inefficient linear power supplies. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit protection with automatic recovery. An Output Over voltage Crowbar circuit protects any powered devices from excessive voltage in the event of a failure of the unit.

The newly updated single-board PWS1000 is ultra-quiet and features the latest generation of current mode PWM control. Extra features include adjustable output voltage audible and visual indicators for low input voltage, low output voltage, over temperature, overload and output on. Either 110 or 220 VAC input (Field Convertible) is available. The PWS1000 also features a four contact output terminal (two positive and two negative contacts) for easy connection of devices to the supply.

Features

• Adjustable output voltage
• Extremely rugged and well suited for marine and other demanding environments
• Ultra-quiet low EMI operation
• Audible & visual indicators for output overload, low input voltage, low output voltage & over-temperature
• Over-temperature shutdown
• Current limiting
• Short circuit protection
• Output over-voltage crowbar
• Dry contact output fail relay
• Remote control option
• Digital Volt/Ammeter option
• Custom output voltages available(8V to 55V)
• 19” Rackmount Available
• 3 year parts and labour warranty
• Parallel output diodes available
• Product Specifications | Download
• Product Manual | Download

Applications

• Marine & other rugged environments
• Mobile Offices (TV and Radio Vans)
• Automotive / RV
• Electric Utilities and Substations
• Base Station Power(Radio & Telecommunications)
• Industrial Controls(OEM Applications)
• Field Work / Construction Sites
• Solar Power Systems
• Emergency Power Backup (UPS)
• Security Systems
• Product Burn-in Facilities

Nominal Vac (ip)	110	220
Actual (Vac)	90-130	180-260
Input Amps (Max)	13.2(12V) 17(24/32/48V)	6.6(12V) 8.5(24/32/48V)
Input Fuse (MDA)	20A(12V) 25A(24/32/48V)	10A(12V) 15A(24/32/48V)
Input Frequency	45-65 Hz
Noise on Input	< 50mV

Output Nominal (op)	12	24	48
Output Volts (DC)	13.6 0.05	27.2 0.05	54.4 0.1
Output Amps	60cont./70peak	40cont./45peak	20cont./22.5peak
Output Adjustment(Vdc)	1.0V
Output Crowbar	16.0 0.5V	32.0 1.0V	63.9 2.0V
Output Ripple & Noise	< 50 mV
Transient Response	< 1V for 50% Surge
Regulation(Line & Load)	< +/- 0.5%
Duty Cycle	Peak 20% for 10min maxContinuous 100% for 24 hours per day
Efficiency	> 80% @ Maximum Output

Operating Temp. Range	-25 to +40C @ maximum output Derate Linearly 2.5% per C from 40C(Optional -40C extra wide temp. operation avail.)
Humidity	0 - 95C Relative Humidity(non-condensing) with optional conformal coating
Audible Noise	NONE - 0db @ 3 ft
Typical Service Life	>10 years (87,600 hours)
Isolation	Input-Case & input-output 1500VDC Output - Case 500VDC(1500VDC @ 48V O/P)

Length	14.5 in/ 36.8 cm
Width	9.9 in/ 25.1 cm
Height	5.5 in/ 14.0 cm
Clearance	1 inch (2.5 cm) all around
Material	Marine Grade Aluminium
Finish	Black Anodize / Powder Epoxy Coat
Fastenings	All 18-8 Stainless Steel
Weight	12 lb / 5.5 kg
Connections	Four contact output terminals
Warranty	3 years
Safety	UL458 & CSA22.2 107.1 Pending
