Features

• Ultra-quiet
• Power sensitive electronics without interference
• Rugged and reliable to ensure years of safe and trouble free operation
• Versatile design with wide variation of input and output combinations
• Precision linear regulator final stage for ultra clean output for all units (except VTC120nr-12-24)
• Extremely rugged and well suited for marine and other demanding environments
• High tolerance for shock and vibration
• Ultra-quiet low EMI operation
• Ideal for running 24V PLC controls from 12 VDC
• Reverse input protection
• Short circuit protection
• Three year parts and labour warranty
• Product Manual | Download

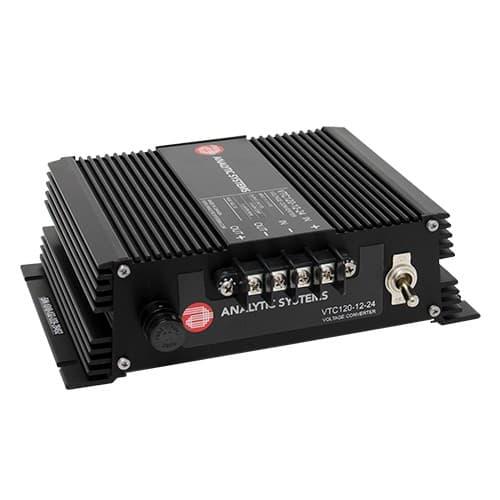

The VTC120 Series of Isolated Voltage Converters are variable duty cycle switching power supplies with precision linear regulator outputs. They can be configured to run from a 12V, 24V or 48VDC battery system to provide input/output voltages as shown below.

Applications include running 24V PLC controls from a 12 Volt battery system, or any other application requiring 24 VDC when only 12 VDC is available or to provide ground isolation between two 12 VDC or 24 VDC power systems, or between a 12 VDC and 24 VDC power system.

Function	Voltage Converter
Conversion	DC to DC
Power Level	120
Input Volts	22 - 30 VDC
Output Volts	12 VDC
Output Amps Continuous	7.5
Output Amps Peak	7.5
Input/Output Isolation	Yes
Technology	Analog
Product Series on website	VTC120
Option Codes	'Z' No Conformal Coating (Any Model), 'X' Ruggedized & Wide Temp, 'U' Safety Special Inspection (CSA/UL), 'O' Open Frame - No chassis, 'M' Military Rugged, 'J' MIL810 Tested Only, 'I' MIL461 Tested Only, 'H' High Output, 'F' Electric Fork Lift, 'E' European ROHS compliant, 'C' MIL461F & MIL810G Tested
More Options	Linear Post Regulator
