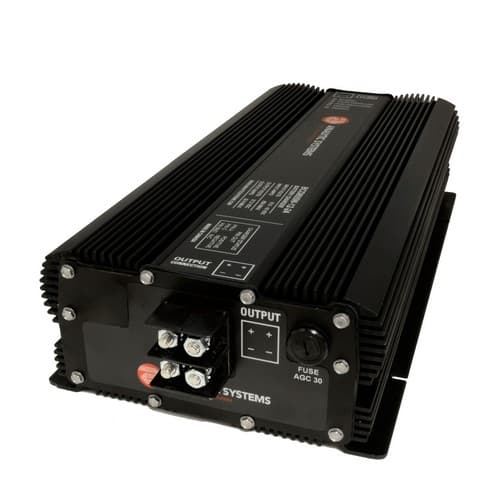

Analytic Systems, BCD805W-12-24, 30A, 24V Out, 11-16V In, Non-Iso DC/DC Battery Charger, 1 Bank, IP66
Manufacturer Info
Features
The BCD805W is housed in a rugged IP66 rated water resistant extruded aluminum housing. It is tested to MIL461E for both radiated and conducted emissions and to MIL810F for shock and vibration.
Visual indicators show when the unit is powered, when it is charging as well as indicators for Input Undervoltage, Output Undervoltage and Internal Overtemperature. Available options include a carrying handle and various Mil-Spec Connectors.
- IP66 rated, can be used in wet location
- Visual indicators for operation and errors
- Military-grade extrusion ensures a high tolerance for shock and vibration
- Fast and accurate charging topology
- Can function as a voltage converter
- Three year warranty (parts & labor)
The BCD805W is housed in a rugged IP66 rated water resistant extruded aluminum housing. It is tested to MIL461E for both radiated and conducted emissions and to MIL810F for shock and vibration.
Visual indicators show when the unit is powered, when it is charging as well as indicators for Input Undervoltage, Output Undervoltage and Internal Overtemperature. Available options include a carrying handle and various Mil-Spec Connectors.
| Specialization | Water Resistant / Waterproof |
|---|---|
| Function | Battery Charger |
| Conversion | DC to DC |
| Power Level | 800 |
| Input Volts | 11 - 15 VDC |
| Output Volts | 24 VDC |
| Output Amps Continuous | 20 |
| Input/Output Isolation | No |
| Technology | Analog |
| Charging Stages | 2 |
| Temperature Compensation | No |
| Equalize | No |
| Battery Banks | 1 |
| Product Series on website | BCD805W |
| Option Codes | 'Y' IP67 Certified, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant |
